Kia EV6 (CV) 2022–2025 Workshop Manual

Steering System / Steering Wheel / Heated steering wheel /

Kia EV6: Heated steering wheel

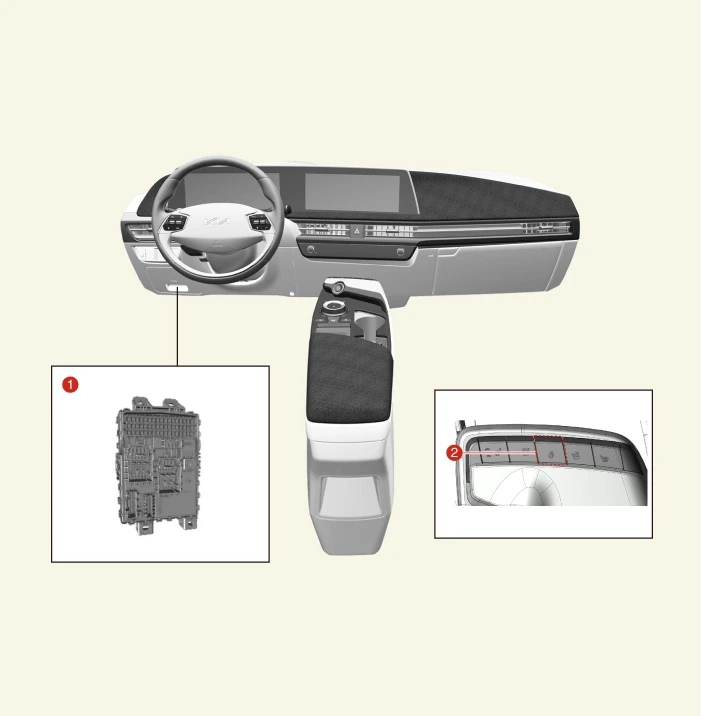

Component

Kia EV6. Heated steering wheel

1. Heated Steering Wheel Control Unit (Integrated with Integrated Central Control Unit, ICU)
2. Heated steering Wheel Control Switch (Integrated with Heater/Ventilation Switch)

Removal

Heated steering wheel control unit (integrated with Integrated Central Control Unit, ICU)

1.Remove the Integrated Central Control Unit (ICU).(Refer to Body Electrical System - "Integrated Central Control Unit (ICU)")

Heated steering wheel control switch (integrated with heater/ventilation switch)

1.Remove the heater/ventilation switch.(Refer to Body Electrical System - " Heater/Ventilation Switch")

Installation

1.Install in the reverse order of removal.

Disassembly and Reassembly

Disassembly 1.Remove the paddle shift switch mounting screws (A). 2.Disconnect the paddle shift connectors (B), and then remove the paddle shift switches (A). 3.Remove the steering wheel ...
