Kia EV6: Hood Latch Assembly

Removal

Kia EV6. Hood Latch Assembly

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Remove the front bumper assembly.(Refer to Front Bumper - "Front Bumper Assembly")

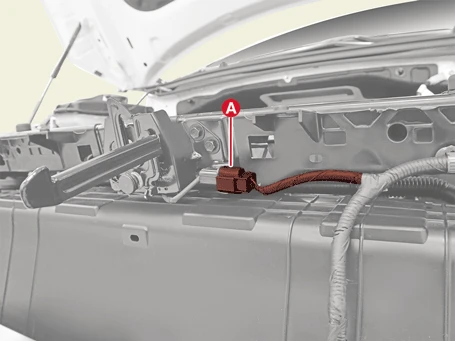

2.Disconnect the hood latch connector (A).

Tightening torque :6.9 - 10.8 N·m (0.7 - 1.1 kgf·m, 5.1 - 8.0 lb·ft)

Kia EV6. Hood Latch Assembly

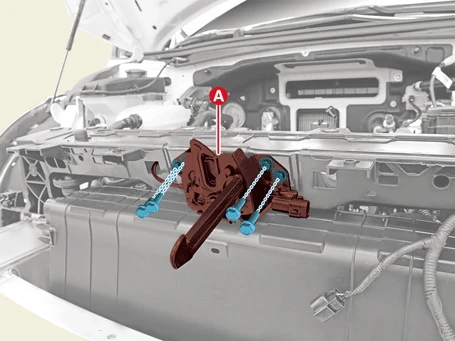

3.Remove the hood latch assembly (A) after removing the bolts.

Kia EV6. Hood Latch Assembly

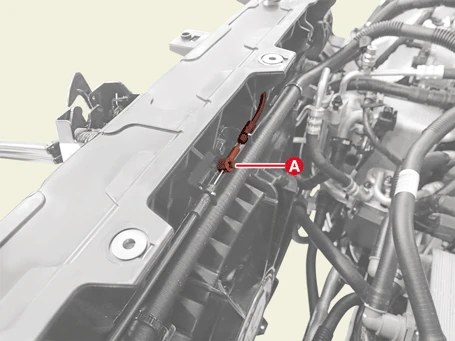

4.Separate the hood latch cable (A).

Kia EV6. Hood Latch Assembly

Installation

Kia EV6. Hood Latch Assembly

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Install in the reverse order of removal.
