Kia EV6: Tailgate Assembly

Removal

Kia EV6. Tailgate Assembly

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

Kia EV6. Tailgate Assembly

Removing or installing the tailgate requires an assistant.

1.Remove the tailgate lid lower trim.(Refer to Tailgate - "Tailgate Lid Trim")

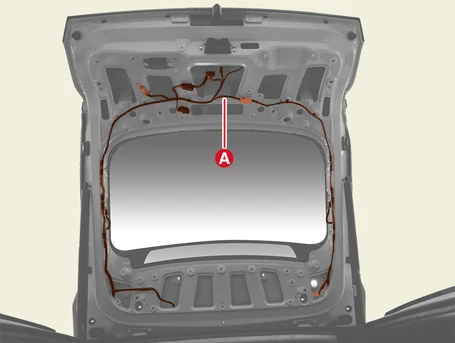

2.Disconnect the connectors and wiring (A).

Kia EV6. Tailgate Assembly

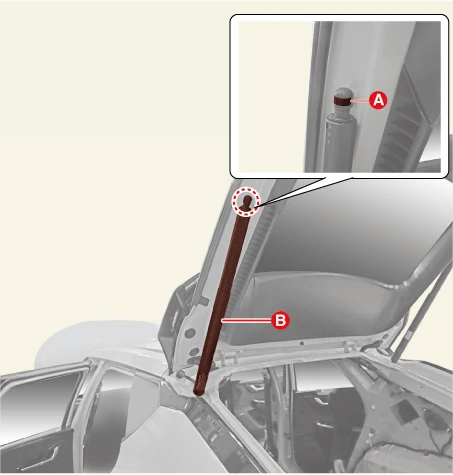

3.Remove the drive unit (B) after removing the clip (A).[LH]

Kia EV6. Tailgate Assembly

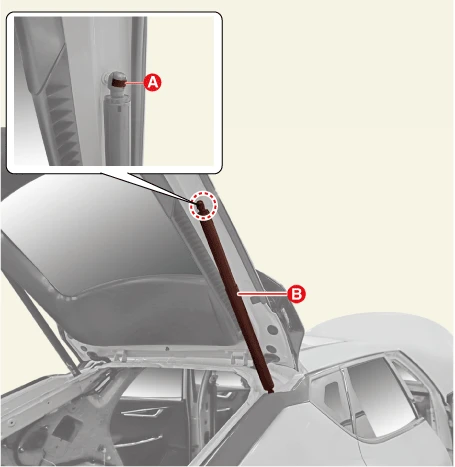

[RH]

Kia EV6. Tailgate Assembly

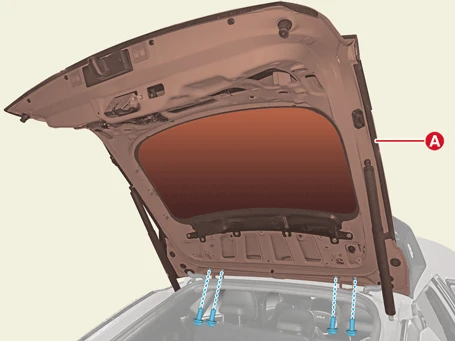

4.Remove the tailgate assembly (A) after removing the bolts.

Tightening torque :21.6 - 26.5 N·m (2.2 - 2.7 kgf·m, 15.9 - 19.5 lb·ft)

Kia EV6. Tailgate Assembly

Installation

Kia EV6. Tailgate Assembly

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Install in the reverse order of removal.
