Kia EV6: Rear Door Frame Garnish and Molding

Removal

Rear Door Frame Molding

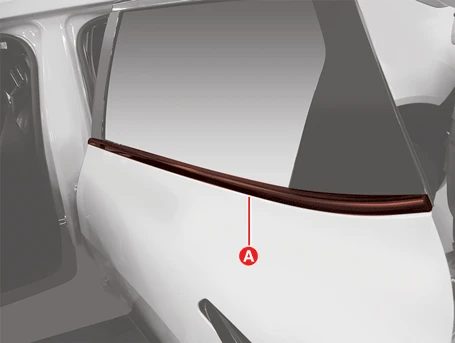

1.Remove the rear door frame molding (A).

Kia EV6. Rear Door Frame Garnish and Molding

Kia EV6. Rear Door Frame Garnish and Molding

Kia EV6. Rear Door Frame Garnish and Molding

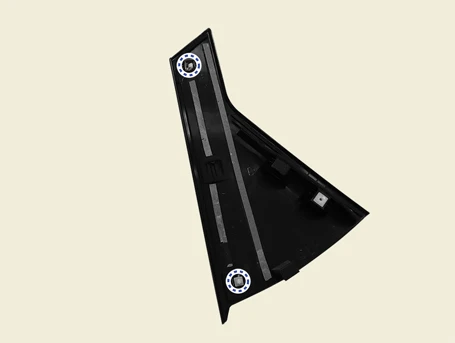

Clip position :

Kia EV6. Rear Door Frame Garnish and Molding

Rear Door Front Frame Garnish

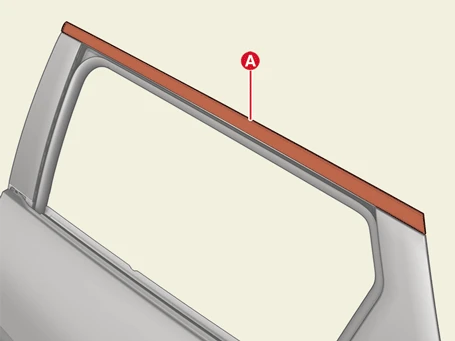

1.Remove the rear door outside belt strip (A).

Kia EV6. Rear Door Frame Garnish and Molding

Kia EV6. Rear Door Frame Garnish and Molding

Kia EV6. Rear Door Frame Garnish and Molding

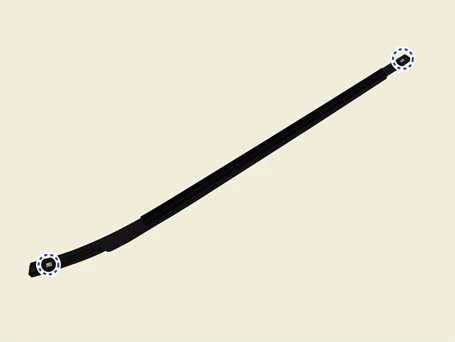

Clip position :

Kia EV6. Rear Door Frame Garnish and Molding

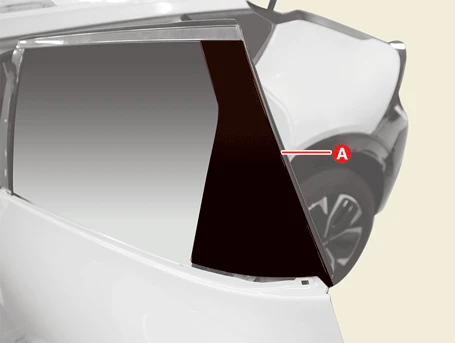

2.Remove the rear door front frame garnish (A).

Kia EV6. Rear Door Frame Garnish and Molding

Rear Door Rear Frame Garnish

1.Remove the rear door delta cover.(Refer to Rear Door - "Rear Door Trim")

2.Remove the rear door outisde belt strip (A).

Kia EV6. Rear Door Frame Garnish and Molding

Kia EV6. Rear Door Frame Garnish and Molding

Kia EV6. Rear Door Frame Garnish and Molding

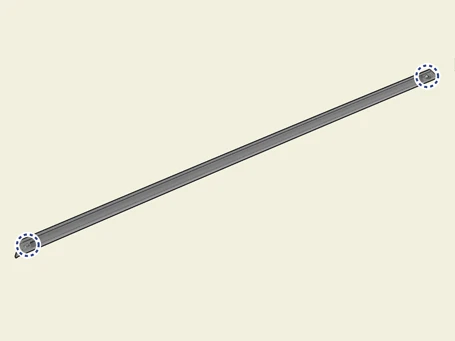

Clip position :

Kia EV6. Rear Door Frame Garnish and Molding

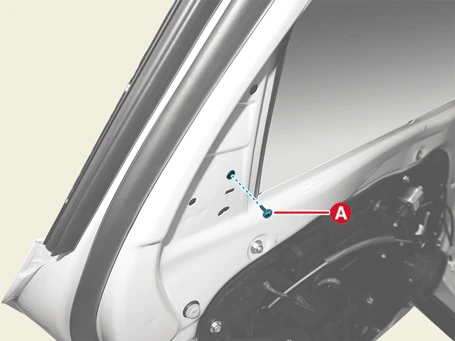

3.Remove the rear frame garnish screw (A).

Kia EV6. Rear Door Frame Garnish and Molding

4.Remove the rear door rear frame garnish (A).

Kia EV6. Rear Door Frame Garnish and Molding

Kia EV6. Rear Door Frame Garnish and Molding

Kia EV6. Rear Door Frame Garnish and Molding

Clip position :

Kia EV6. Rear Door Frame Garnish and Molding

Installation

1.Install in the reverse order of removal.
