Removal
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Disconnect the battery negative ( - ) terminal and the service interlock connector.(Refer to Battery Control System - "Auxiliary 12 V Battery - 2WD")(Refer to Battery Control System - "Auxiliary 12 V Battery - 4WD")

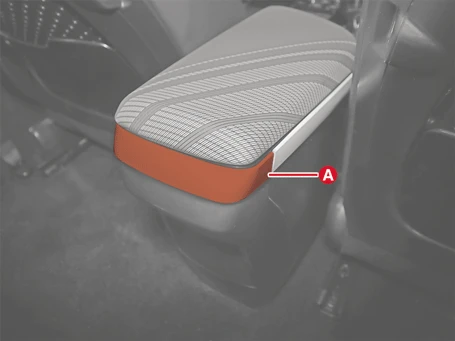

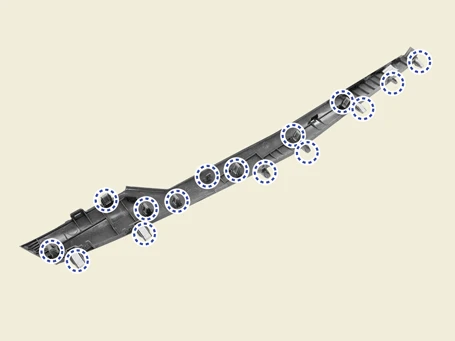

2.Remove the rear console upper garnish (A).

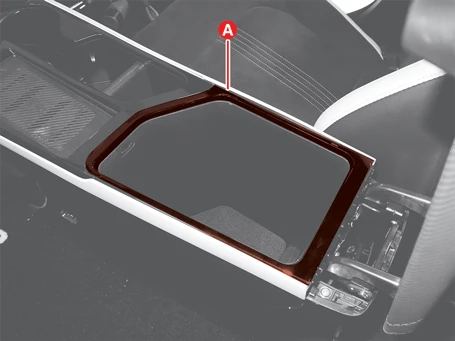

3.Remove the storage box garnish (A).
4.Remove the console upper cover (A).

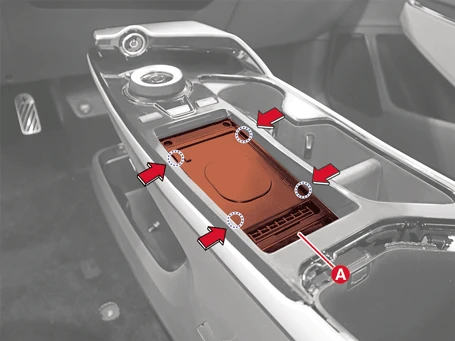

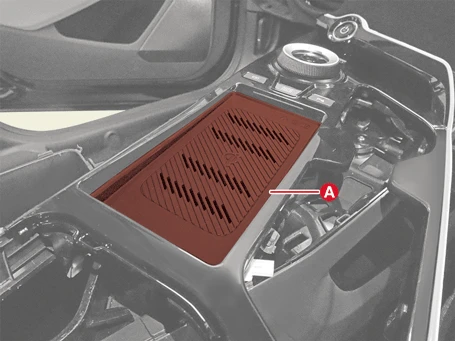

5.Remove the wireless charging pad (A).
6.Remove the wireless power charger (WPC) (A) after pressing the hook in the direction of the arrow.

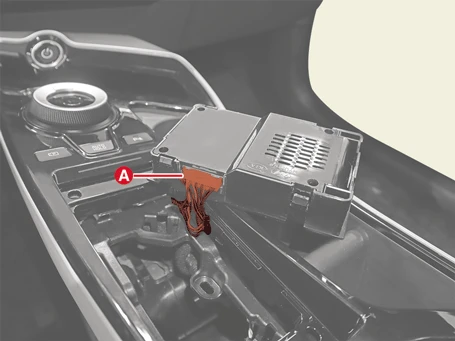

7.Disconnect the wireless power charger connector (A).

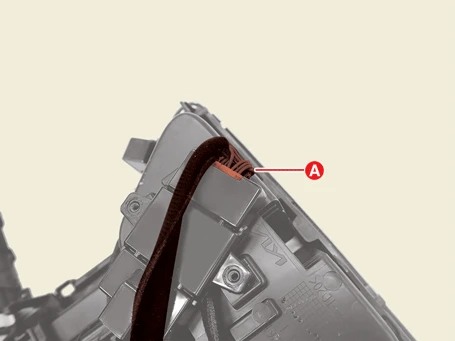

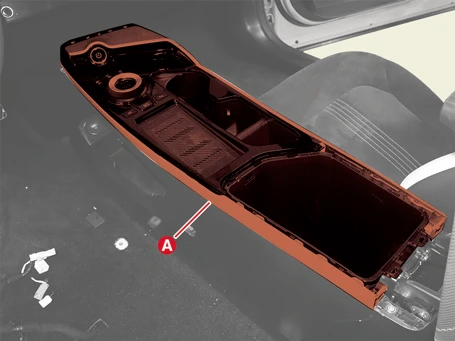

8.Remove the console upper cover after disconnecting the connector (A).
Installation
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Install in the reverse order of removal.
Disassembly
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Remove the dial type SBW.(Refer to Motor and Reduction Gear System - "SBW(Shift By Wire) Lever")

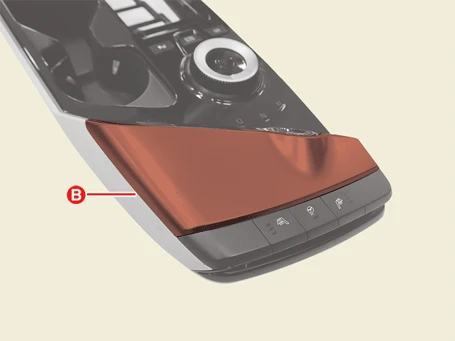

2.Remove the console upper center cover (B) after pressing the clips (A).

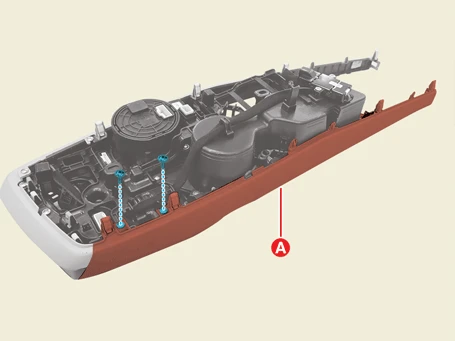

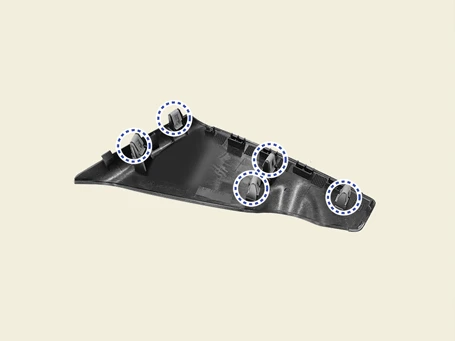

3.Remove the console passenger seat side garnish (A) after removing the screws.

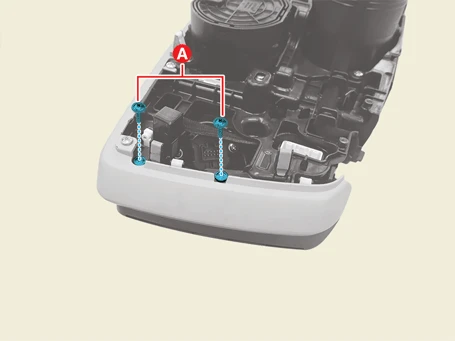

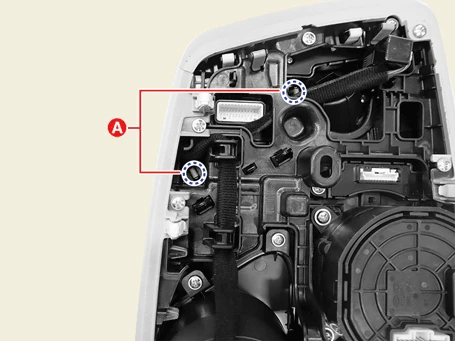

4.Remove the floor console switch complete screws (A).

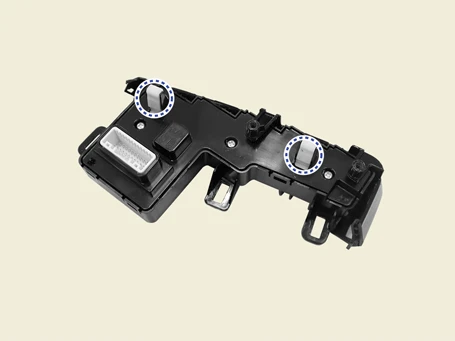

5.Remove the floor console switch complete (A).

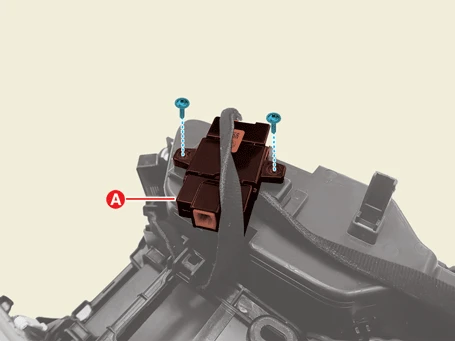

6.Remove the console mood lamp unit (A) after removing the screws.

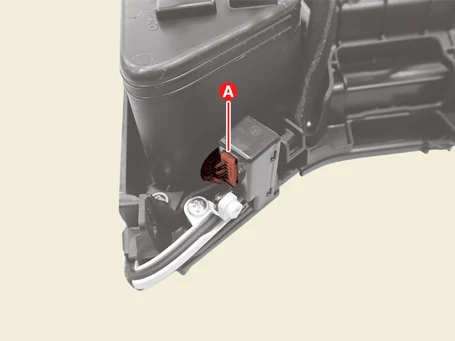

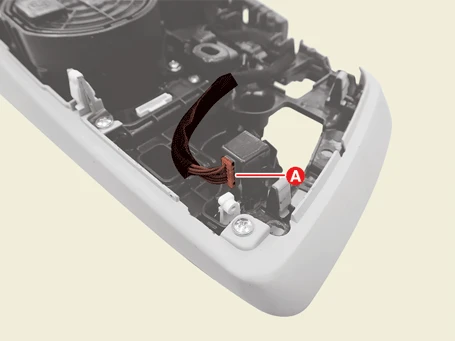

7.Remove the console mood lamp unit connector (A).
8.Remove the console mood lamp connectors (A).

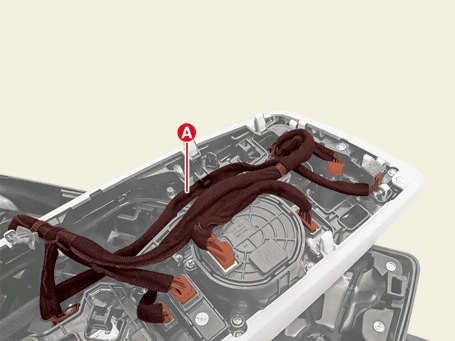

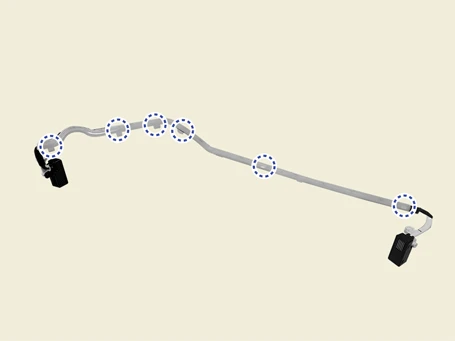

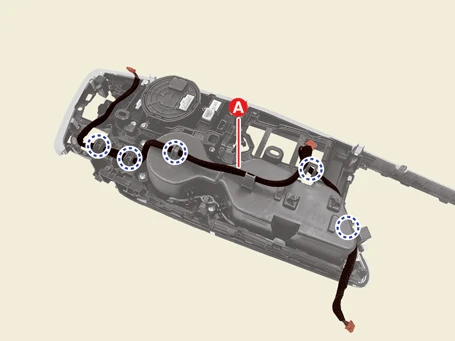

9.Remove the console mood lamp wiring (A).

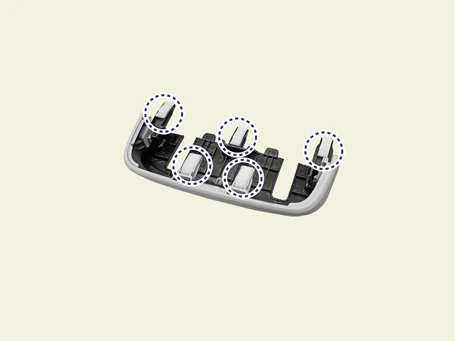

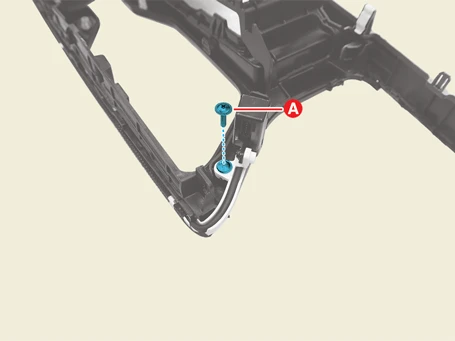

10.Remove the console mood lamp screws (A).

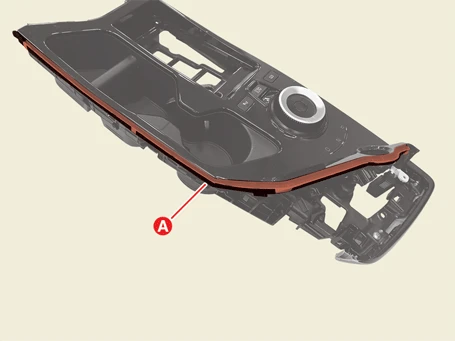

11.Remove the console mood lamp (A).

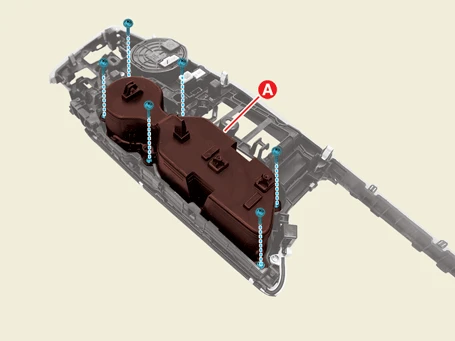

12.Remove the floor console cup holder (A) after removing the screws.
Reassembly
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Reassemble in the reverse order of disassembly.
