Removal
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
[LH]
1.Remove the rear seat back assembly [LH].(Refer to Rear Seat - "Rear Seat Assembly")

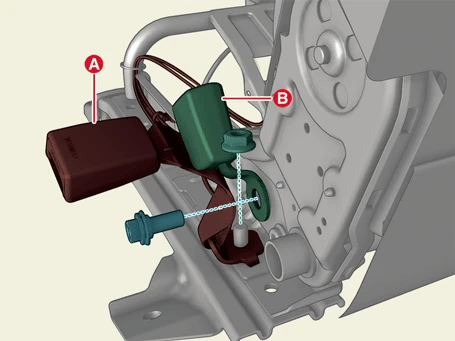

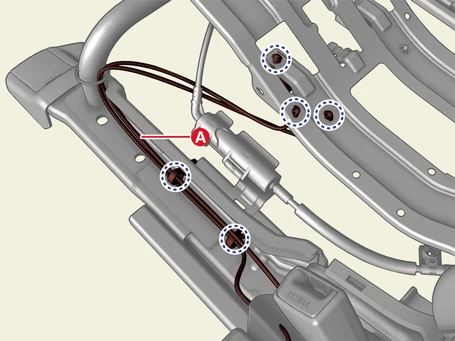

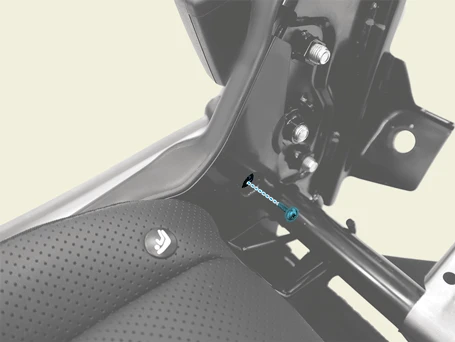

2.After separating the wiring clip (A), remove the rear seat belt buckle (B) after removing the bolt.
Tightening torque : 39.2 - 53.9 N·m (4.0 - 5.5 kgf·m, 28.9 - 39.8 lb·ft)
[RH]
1.Remove the rear seat back assembly [RH].(Refer to Rear Seat - "Rear Seat Assembly")

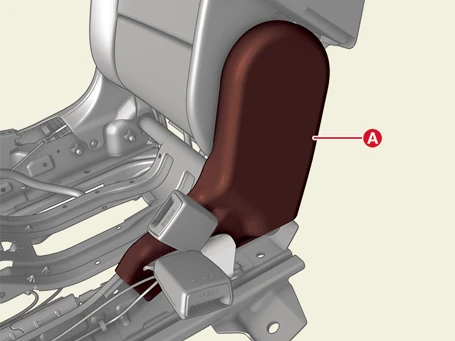

2.Remove the rear seat shield inner cover (A) after removing the screw.
3.Remove the rear seat belt buckle wiring (A).

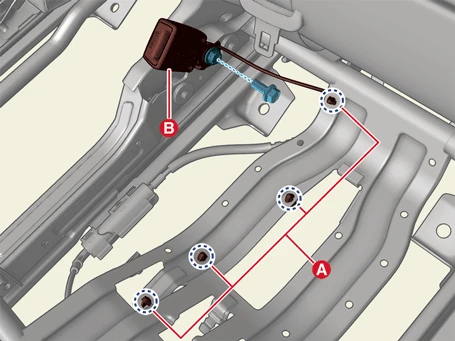

4.Remove the rear center seat belt buckle (A) and rear seat belt buckle [RH] (B) after removing the bolt and nut.
Tightening torque : 39.2 - 53.9 N·m (4.0 - 5.5 kgf·m, 28.9 - 39.8 lb·ft)
Installation
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Install in the reverse order of removal.
• Buckle and Tongue Check to ensure that the right seat belt buckles are used with correct seating position tongues.
• Distinguish the side buckle and center buckle to match them. (Checking the imprinting mark)
• When foreign materials are stuck in the inside button of buckle, it may cause interference during the inside latching operation, leading to a faulty tongue buckling.
• Possible causes includes beverages (viscous drinks), toothpicks, sand, plastic, vinyl, metal pieces, etc.
