Kia EV6: USB Charger

Removal

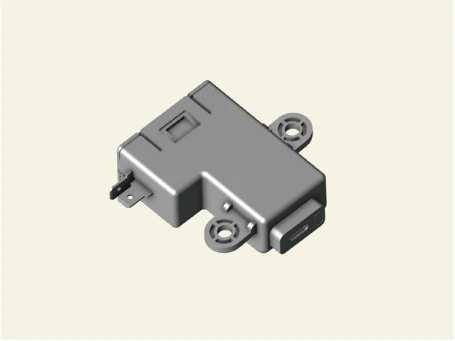

Kia EV6. USB Charger

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

Front Console Cover

1.Remove the front console cover.(Refer to Body - "Front Console Cover")

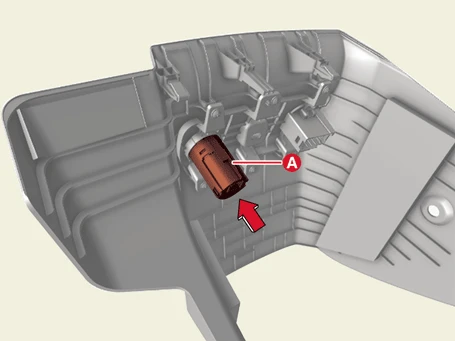

2.Remove the USB charger (A) in the direction of the arrow.

Kia EV6. USB Charger

Kia EV6. USB Charger

Floor Console

1.Disconnect the battery negative ( - ) terminal and the service interlock connector.(Refer to Battery Control System - "Auxiliary 12 V Battery - 2WD")(Refer to Battery Control System - "Auxiliary 12 V Battery - 4WD")

2.Remove the floor console assembly. (Refer to Body - “Floor Console Assembly”)

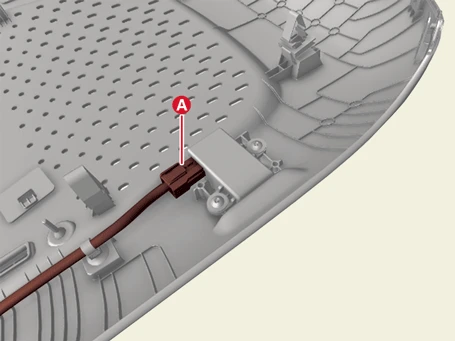

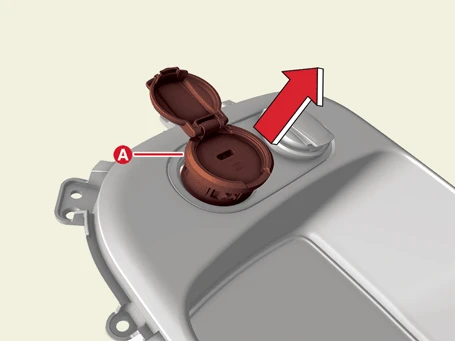

3.Disconnect the USB charger connector (A).

Kia EV6. USB Charger

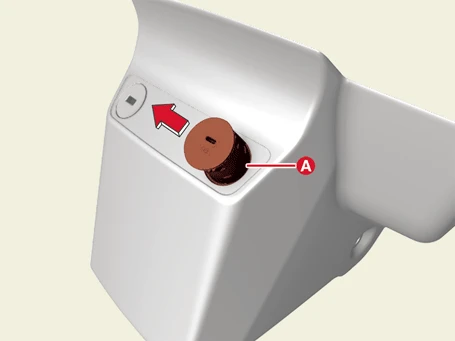

4.Remove the USB charger (A) in the direction of the arrow.

Kia EV6. USB Charger

Front Seat Back Board

1.Disconnect the battery negative ( - ) terminal and the service interlock connector.(Refer to Battery Control System - "Auxiliary 12 V Battery - 2WD")(Refer to Battery Control System - "Auxiliary 12 V Battery - 4WD")

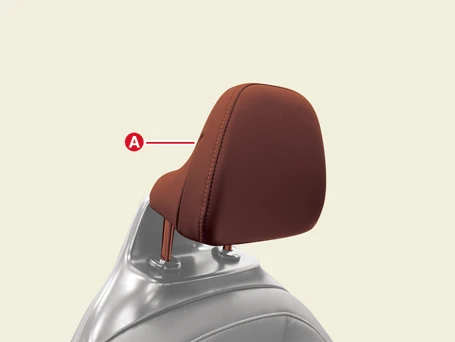

2.Remove the front seat headrest (A).

Kia EV6. USB Charger

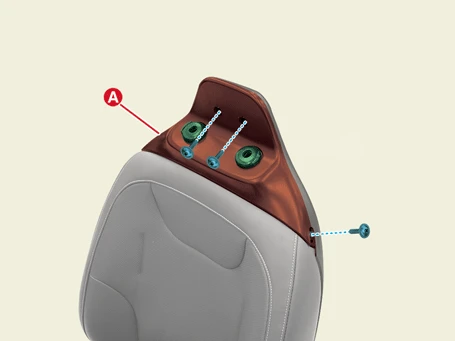

3.Remove the front seat back board (A) after removing the screws.

Kia EV6. USB Charger

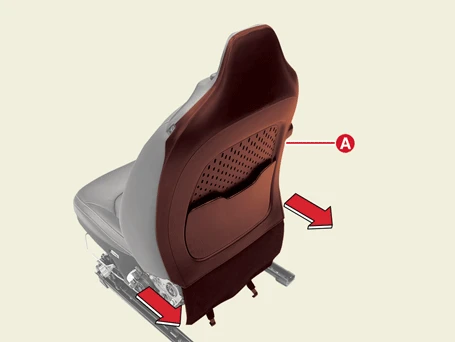

4.Remove the front seat back board (A) from the bottom in the direction of the arrow.

Kia EV6. USB Charger

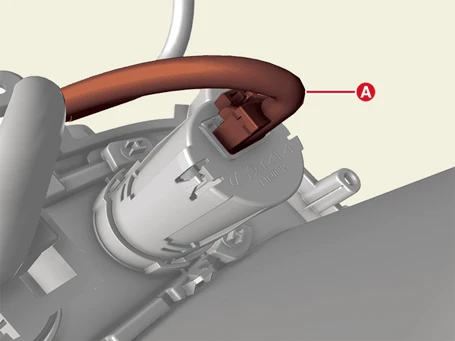

5.Disconnect the USB charger connector (A).

Kia EV6. USB Charger

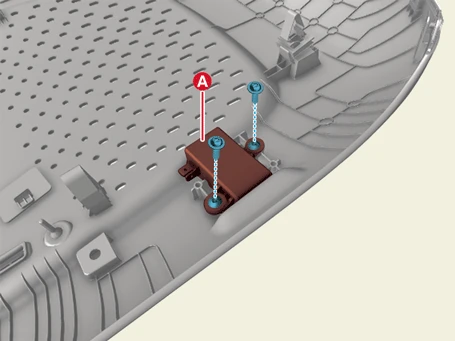

6.Remove the USB charger (A) after removing the screws.

Kia EV6. USB Charger

Kia EV6. USB Charger

Installation

Kia EV6. USB Charger

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Install in the reverse order of removal.
