Kia EV6: Integrated Memory Seat (IMS) Switch

Removal

Kia EV6. Integrated Memory Seat (IMS) Switch

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Remove the front door trim [Driver side].(Refer to Body - "Front Door Trim")

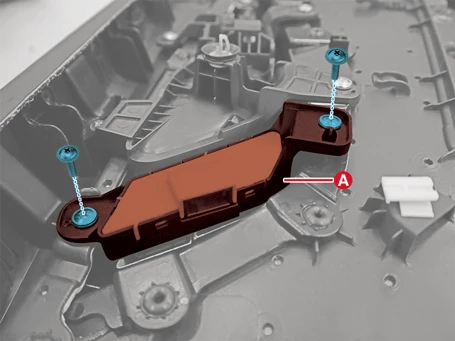

2.Remove the memory power seat switch (A) after removing the screws.

Kia EV6. Integrated Memory Seat (IMS) Switch

Installation

Kia EV6. Integrated Memory Seat (IMS) Switch

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Install in the reverse order of removal.

Inspection

Kia EV6. Integrated Memory Seat (IMS) Switch

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Remove the front driver door trim.(Refer to Body - "Front Door Trim")

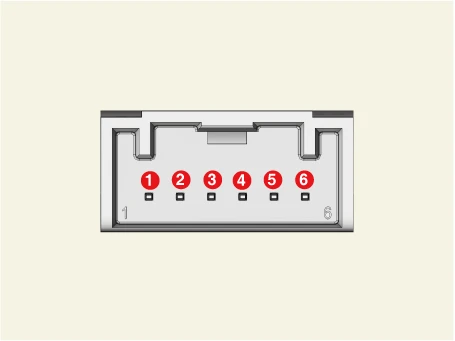

2.When each switch is pressed, check the continuity between integrated memory seat switch connector and ground.

Kia EV6. Integrated Memory Seat (IMS) Switch

Switch Terminal Resistance (±1%)
Memory 1 3 - 5 1.5 kΩ
Memory 2 1.8 kΩ
