Removal
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Remove the steering wheel.(Refer to Steering System - "Steering Wheel")
2.Remove the steering column shroud panel.(Refer to Body - "Steering Column Shroud Panel")

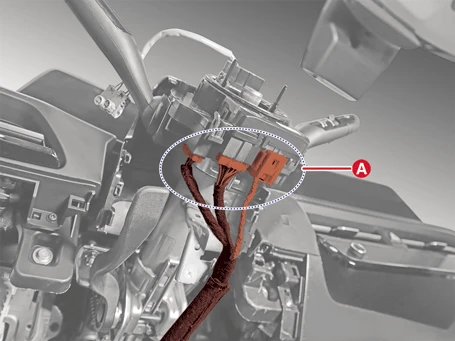

3.Disconnect the multifunction switch connectors (A).

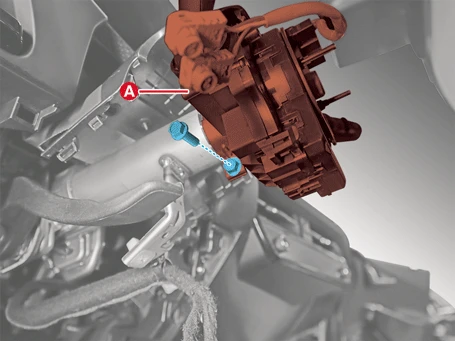

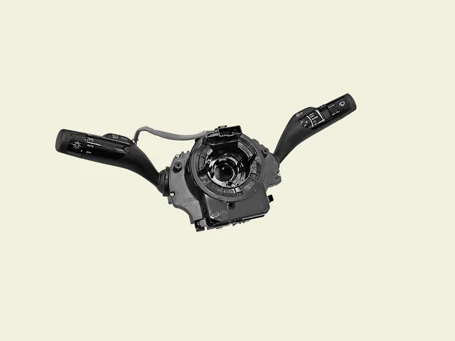

4.Remove the multifunction switch (A) after removing the bolt.
Tightening torque :4.5 - 6.5 N·m (0.5 - 0.7 kgf·m, 3.3 - 4.8 lb·ft, 39.9 - 57.3 lb·in)
Installation
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Install in the reverse order of removal.
