Removal
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
Front Door Lock Module
1.Remove the front door latch.(Refer to Body - "Front Door Latch Assembly")
Rear Door Lock Module
1.Remove the rear door latch.(Refer to Body - "Rear Door Latch Assembly")
Tailgate Lock Module
1.Remove the power tailgate latch.(Refer to Body - "Power Tailgate Latch Assembly")
Hood Lock Module
1.Remove the hood latch.(Refer to Body - "Hood Latch Assembly")
Installation
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Install in the reverse order of removal.
Inspection
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
Front Door Lock Module
1.Remove the front door module.(Refer to Body - "Front Door Module")

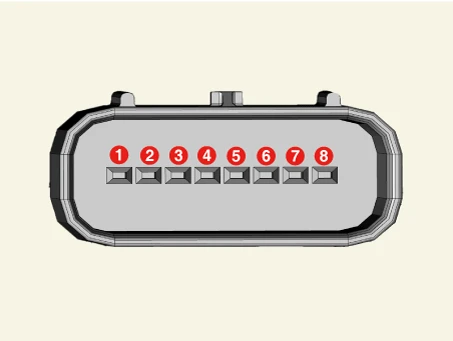

2.Disconnect the connector from the door lock actuator.
[Central Lock / Dead Lock]
| Terminal | Function | |
| LH | RH | |
| 1 | - | M3 |
| 2 | - | M2 |
| 3 | COM | M1 |
| 4 | Lock / Unlock switch | Switch (AJAR) |
| 5 | Switch (AJAR) | Lock / Unlock switch |
| 6 | M1 | COM |
| 7 | M2 | - |
| 8 | M3 | - |
3.Check actuator operation by connecting power and ground as shown in the table below.
[Central Lock]
[LH]
| Terminal | Function | |
| Central Lock | Central Unlock | |
| 8 | - | + |
| 7 | + | - |
| 3 - 4 | ON → OFF | OFF → ON |
| 3 - 5 |
Door open & half latching : ON Full latching : OFF |
|
[RH]
| Terminal | Function | |
| Central Lock | Central Unlock | |
| 1 | + | - |
| 2 | - | + |
| 6 - 5 | ON → OFF | OFF → ON |
| 6 - 4 |
Door open & half latching : ON Full latching : OFF |
|
[Dead Lock]
[LH]
| Terminal | Function | |
| LockDead | UnlockDead | |
| 8 | - | + |
| 7 | - | + |
| 6 | + | - |
[RH]
| Terminal | Function | |
| LockDaed | UnlockDead | |
| 1 | - | + |
| 2 | - | + |
| 4 | + | - |
Rear Door Lock Module
1.Remove the rear door trim.(Refer to Body - "Rear Door Trim")
2.Disconnect the connector from the rear door lock actuator.
[Central Lock / Power Child Lock / Dead Lock]
| Terminal | Function | |
| LH | RH | |
| 1 | Power child switch | M2 |
| 2 | COM | M3 |
| 3 | Lock/Unlock switch | M1 |
| 4 | Switch (AJAR) | M4 |
| 5 | M4 | Switch (AJAR) |
| 6 | M1 | Lock/Unlock switch |
| 7 | M3 | COM |
| 8 | M2 | Power child switch |
3.Check actuator operation by connecting power and ground as shown in the table below.
[Central Lock]
[LH]
| Terminal | Function | |
| Central Lock | Central Unlock | |
| 8 | - | + |
| 7 | + | - |
| 2 - 3 | ON → OFF | OFF → ON |
| 2 - 4 |
Door open & half latching : ON Full latching : OFF |
|
[RH]
| Terminal | Function | |
| Central Lock | Central Unlock | |
| 1 | + | - |
| 2 | - | + |
| 7 - 6 | ON → OFF | OFF → ON |
| 7 - 5 |
Door open & half latching : ON Full latching : OFF |
|
[Power Child Lock]
[LH]
| Terminal | ||
| Child Lock | Child Unlock | |
| 6 | - | + |
| 5 | + | - |
| 2 - 1 | ON → OFF | OFF → ON |
[RH]
| Terminal | ||
| Child Lock | Child Unlock | |
| 3 | - | + |
| 4 | + | - |
| 7 - 8 | ON → OFF | OFF → ON |
[Dead Lock]
[LH]
| Terminal | Function | |
| Dead Lock | Dead Unlock | |
| 8 | - | + |
| 7 | - | + |
| 5 | + | - |
[RH]
| Terminal | Function | |
| Dead Lock | Dead Unlock | |
| 1 | - | + |
| 2 | - | + |
| 4 | + | - |
Tailgate Lock Module
1.Remove the tailgate lid trim.(Refer to Body - " Tailgate Lid Trim")
2.Disconnect the tailgate latch connector.

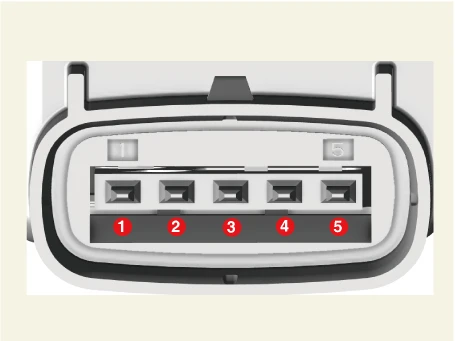

3.Check actuator operation by connecting power and ground as shown in the table below.
| Terminal | Function | ||
| Full Lock | Half Lock | Full Open | |
| 1 | + | X | X |
| 2 | - | X | X |
| 5 - 3 | OFF | OFF | ON |
| 4 - 3 | OFF | ON | ON |
Hood Lock Module
1.Remove the hood latch assembly.(Refer to Body - "Hood Latch Assembly")
2.Check for continuity between terminals No. 1 and No. 2. If there is no continuity, replace the hood latch switch.
