Inspection
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
Non-IMS
1.Remove the front door trim.(Refer to Front Door - "Front Door Trim")
2.Disconnect the outside rear view mirror connector.

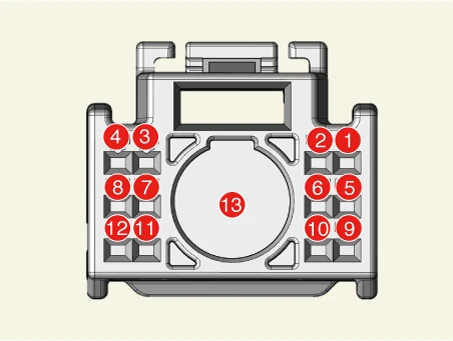

3.Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.
[Mirror Actuator]
| Position | Terminal | ||
| 1 | 2 | 3 | |
| Up | - | + | + |
| Down | + | - | - |
| Left | - | - | + |
| Right | + | + | - |
[Mirror Heater]
| Position | Terminal | |
| 4 | 5 | |
| ON | + | - |
[Side Repeater Lamp]
| Position | Terminal | |
| 8 | 5 | |
| ON | + | - |
[Folding Mirror]
| Position | Terminal | |
| 6 | 7 | |
| Folding | + | - |
| Unfolding | - | + |
