Removal
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
Front Power Window Motor
1.Remove the front door trim.(Refer to Body - "Front Door Trim")
2.Disconnect the front power window motor connector (A).

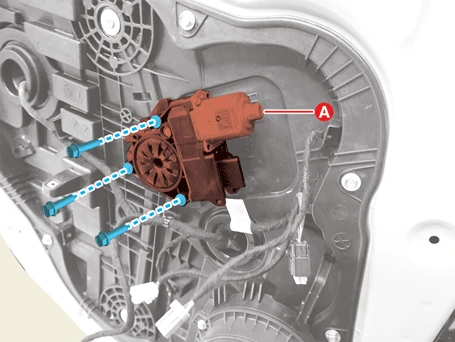

3.Remove the front power window motor (A) after removing the bolts.
Rear Power Window Motor
1.Remove the rear door trim.(Refer to Body - "Rear Door Trim")

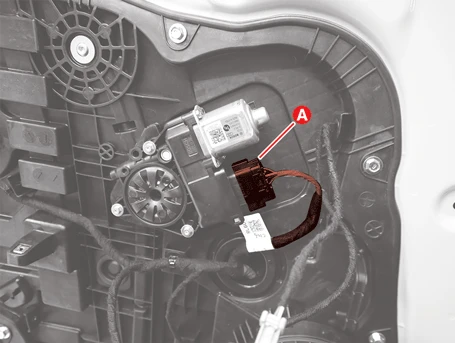

2.Disconnect the rear power window motor connector (A).

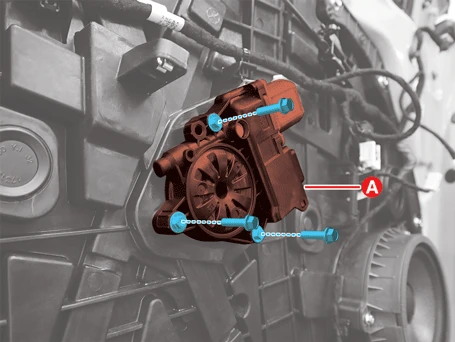

3.Remove the rear power window motor (A) after removing the bolts.
Installation
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Install in the reverse order of removal.
