Removal

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

Front Seat Relaxation Comfort Switch

1.Remove the relaxation comfort switch.(Refer to Seat Electrical - "Power Seat Control Switch")

Relaxation Comfort Seat Unit

1.Remove the memory Integrated Memory Seat (IMS) unit.(Refer to Integrated Memory Seat (IMS) - "Integrated Memory Seat (IMS) Unit")

Installation

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Install in the reverse order of removal.

Adjustment

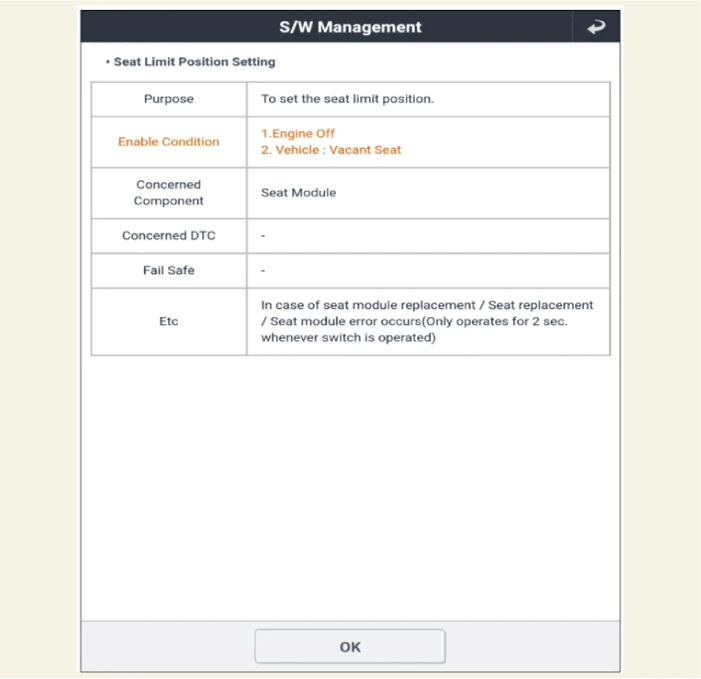

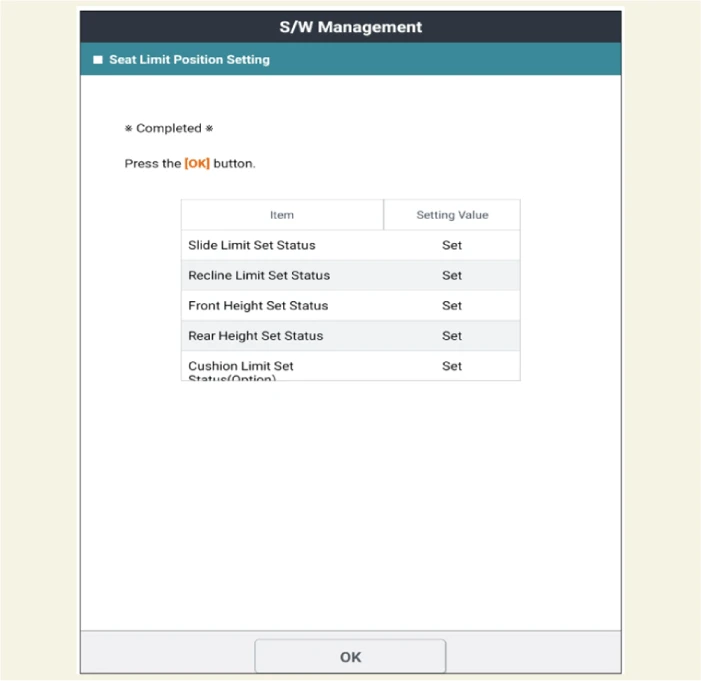

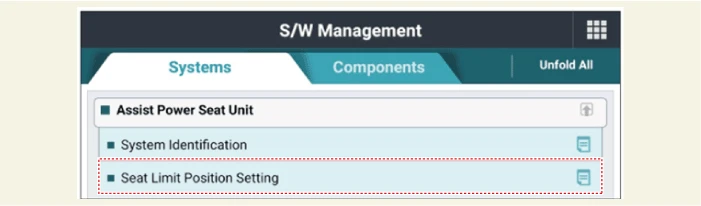

1.Set the seat limit position with the KDS.
