Replacement

[2WD]

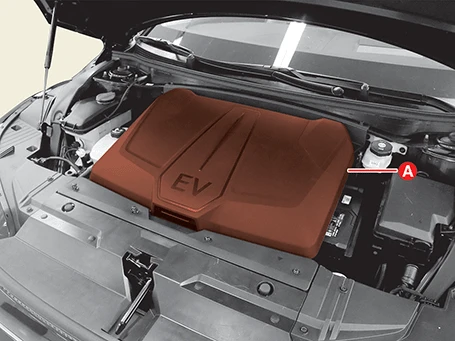

1.Open the front trunk (A).

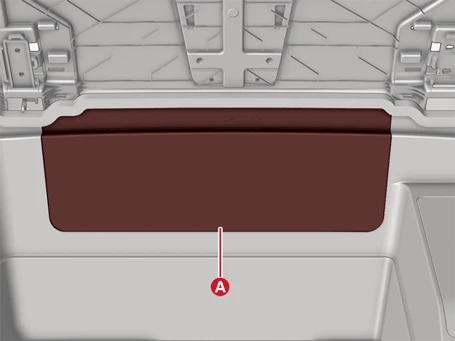

2.Remove the service cover (A).

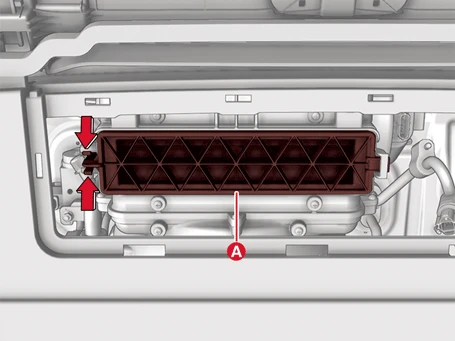

3.Remove the air filter cover (A) for air conditioner by pressing the filter cover knob in the direction of the arrow.

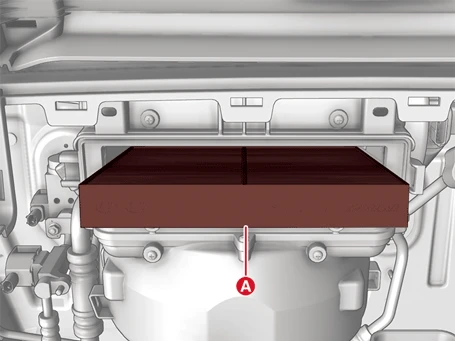

4.Replace the air conditioner air filter (A).

5.Install in reverse order of removal.

• Replace the air filter for air conditioning according to the replacement cycle of the instruction manual.

• When driving in an area with severe air pollution or in an area where a lot of fumes are generated due to poor road conditions, frequent inspection and replacement are required.

[4WD]

1.Open the front trunk (A).

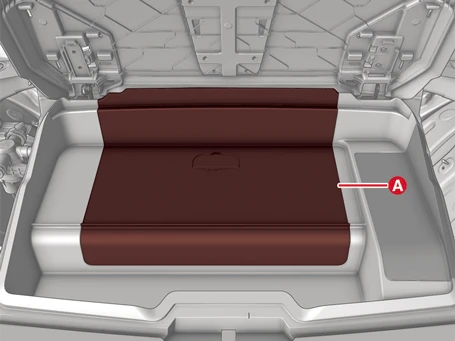

2.Remove the service cover (A).

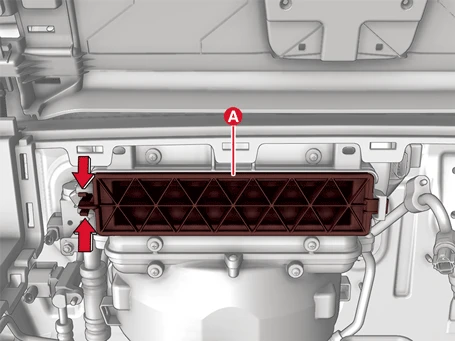

3.Remove the air filter cover (A) for air conditioner by pressing the filter cover knob in the direction of the arrow.

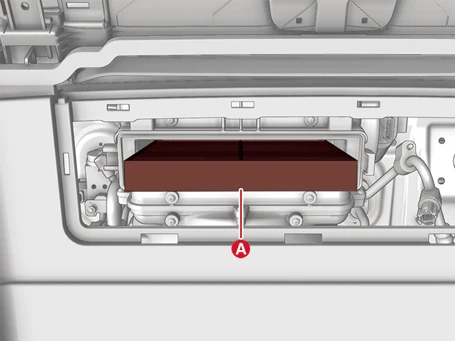

4.Replace the air conditioner air filter (A).

5.Install in reverse order of removal.

• Replace the air filter for air conditioning according to the replacement cycle of the instruction manual.

• When driving in an area with severe air pollution or in an area where a lot of fumes are generated due to poor road conditions, frequent inspection and replacement are required.
