Special Service Tool
| Tool Name / Number | Illustration | Description |
|
High Voltage Battery System Assembly (BSA) transport hanger 09375 - K4100 |
|
Used for transporting the high voltage Battery System Assembly (BSA) |
|
High Voltage Battery Module Assembly transport hanger 09375 - GI700 |
|
Used to transferring the high voltage Sub Battery Pack Assembly (Sub-BPA) |
|
High voltage battery module surface pressure jig 09375 - GI800 |
|
Used for compressing the high voltage Sub Battery Pack Assembly (Sub-BPA) |
|
High voltage battery module guide 09375 - GI900 |
|
Used for seating the high voltage battery module on the surface pressure jig |
|
High voltage battery module disassembly jig TMS - 1907 |
|
Used for disassembling the high voltage Sub Battery Pack Assembly (Sub-BPA) |
|
Application guide 0K375 - CV210 |
|
Used for applying the high voltage battery gap filler |
|
Application nozzle 0K375 - CV220 |
|
|
|
Application support 0K375 - CV230 |
|
|
|
Application dispenser gun 0K375 - CV300 |
|
|
|
TGF-NT300NL 600cc cartridge 09375 - GI220 |
|
|
|
Static mixer 09375 - GI230 |
|
|
|
Coolant refiller & suction tool 0K253 - J2300 |
|
Used for filling and draining coolant to the High Voltage Battery System Assembly (BSA) |
– TOOL & TECH (overseas@toolntech.com)

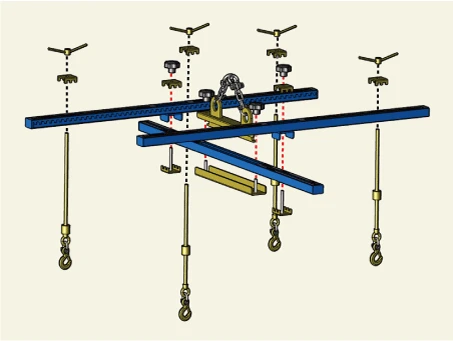

[High voltage battery transfer hanger (09375 - K4100) Assembly drawing]
Universal Tool
| Tool Name | Illustration | Description |
|
Digital tester |
|
Used for measuring the voltage, current and resistance |
| Mega ohm tester |
|
Used for measuring the insulation resistance, voltage, and resistance |
| Contact pin |
|
Use a contact pin to prevent damage on the connector and for above accurate measurement |
Universal Equipment
| Tool Name | Illustration | Description |
|
High voltage battery module balancer Tool & Tech T2000 |
|
Used for balancing the cell when replacing the battery module (Required to reduce voltage difference with existing battery modules when replacing the battery modules) |
|
Air tightness test equipment GIT ULT - M100 G7XKDNN001 By GIT |
|
Used for inspecting the air tightness of the Battery System Assembly (BSA) and PE system |
|
Battery System Assembly (BSA) adapter G1XTGCP003 By GIT |
|
Used for checking data of Battery System Assembly (BSA) |
| Helium gas and pressure regulator |
|
Used for detecting micro-leakage (※ Helium gas detectors purchase commercial products) |
| Helium gas detector |
|
He, H2, Ar, CO2 Leak Detector 1) Maker : RESTEK / USA 2) Model number : No. 28500 |
