Kia EV6: Description and Operation

Description

System Component

• The high voltage battery system saves and supplies electric energy for driving the vehicle.

• It consists of 32 battery modules, the Battery Management Unit (BMU), the Cell Monitoring Unit (CMU), and the Power Relay Assembly (PRA).

Battery System Assembly Component

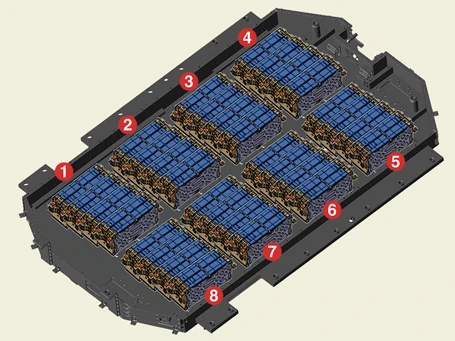

• Sub Battery Pack Assembly (Sub-BPA) - 8 packs- Pack Number

Kia EV6. Description and Operation

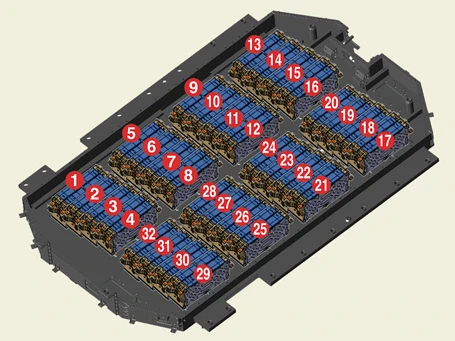

• Battery Module Assembly (BMA) - 32 modules (2P6S)- Module Number

Kia EV6. Description and Operation

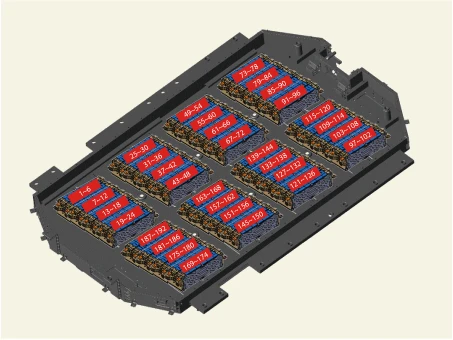

• Cell - 192- Cell Number

Kia EV6. Description and Operation

    Previous pageComponents and Components Location

    Component 1. Main Fuse 2. Sub Battery Pack Assembly (Sub-BPA) 3. Battery Module Assembly (BMA) 4. Battery Management Unit (BMU) 5. Power Relay Assembly (PRA) 6. Cell Monitoring Unit (CMU ...

    PREV

    Next pageCircuit Diagram

    Circuit Diagram ...

    NEXT
