Removal
• When working on high voltage system, the work should be performed by technicians who have completed the relevant training. It is because that lack of knowledge of the high voltage system can lead to serious accidents due to electric shock or electric leakage.
• When working a high voltage system, the technician must be recognized and observe "General Safety Information and Caution". If do not follow, serious accidents like electric shock and short circuit are caused.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedures.
1.Disconnect the battery negative ( - ) terminal and the service interlock connector.(Refer to Battery Control System - "Auxiliary 12 V Battery")
2.Remove the front trunk.(Refer to Body - "Front Trunk")

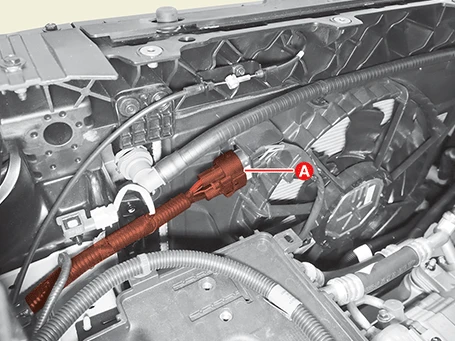

3.Disconnect the cooling fan connector (A).

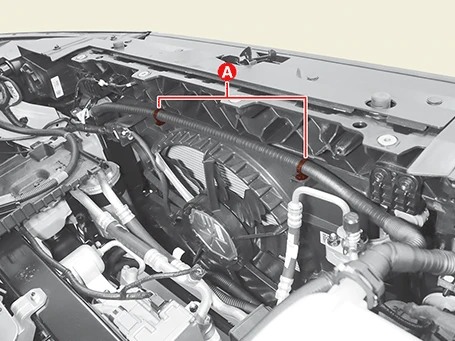

4.Separate the power electric radiator upper hose clips (A).

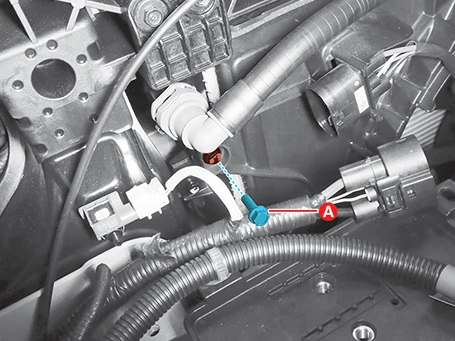

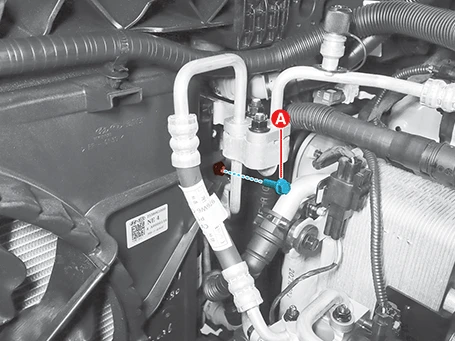

5.Remove the cooling fan bolts (A).
Tightening torque :4.9 - 7.8 N·m (0.5 - 0.8 kgf·m, 3.6 - 5.8 lb·ft, 43.4 - 69.4 lb·in)
[LH]

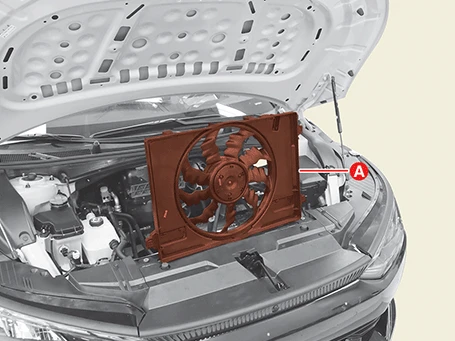

6.Remove the cooling fan assembly (A).
Installation
1.Install in the reverse order of removal.
