Kia EV6: Rear Lower Arm

Removal

1.Remove the rear under cover.(Refer to Motor and Reduction Gear System - "Rear Under Cover")

2.Remove the rear coil spring.(Refer to Rear Suspension System - "Rear Coil Spring")

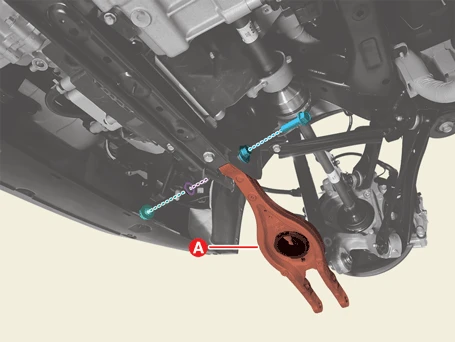

3.Remove the rear lower arm (A) after removing the cam bolt, nut, and plate.

Tightening torque :107.9 - 117.7 N·m (11.0 - 12.0 kgf·m, 79.6 - 86.8 lb·ft)

Kia EV6. Rear Lower Arm

Kia EV6. Rear Lower Arm

• Install the transmission jack and lift up the parts to prevent the bolts and nuts from damage when installing or removing.

• Mark and remove all bolts and nuts to prevent incorrectly positioned installation.

Kia EV6. Rear Lower Arm

Hold the bolt and remove or install the nut.

Installation

1.Install in the reverse order of removal.

Kia EV6. Rear Lower Arm

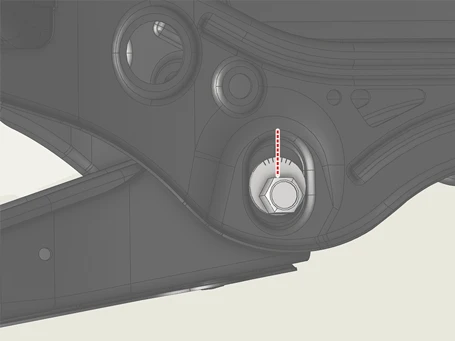

When tightening the nut, align the center of the bolt plate scale with the center of the guide.

Kia EV6. Rear Lower Arm

2.Check the alignment.(Refer to Alignment - "Repair Procedures")

Inspection

1.Check the bushing for wear and aging.

2.Check the rear lower arm for bent or damage.

3.Check all bolts and nuts.
