Kia EV6: Rear Cross Member

Removal

1.Remove the height sensor. [If equipped](Refer to Body Electric System - "Intelligent Front-lighting System (IFS)")

2.Remove the rear motor and reduction gear assembly.(Refer to Motor and Reduction Gear System - "Rear Motor and Reduction Gear Assembly")

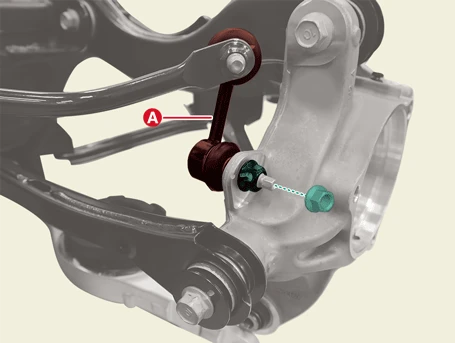

3.Remove the stabilizer bar link (A) after removing the nut.

Tightening torque :98.1 - 117.7 N·m (10.0 - 12.0 kgf·m, 72.3 - 86.8 lb·ft)

Kia EV6. Rear Cross Member

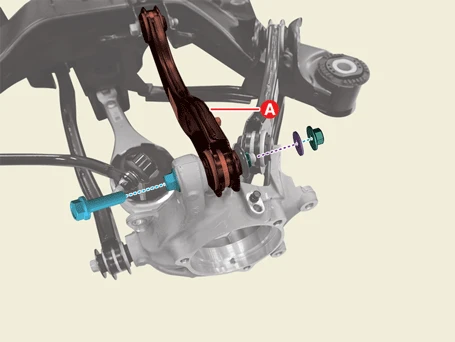

4.Remove the rear upper arm - rear (A) after removing the bolt, washer and nut.

Tightening torque :176.5 - 196.1 N·m (18.0 - 20.0 kgf·m, 130.2 - 144.7 lb·ft)

Kia EV6. Rear Cross Member

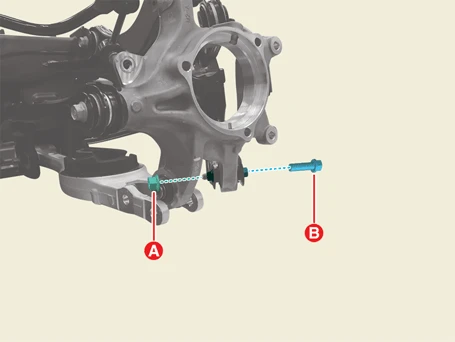

5.Remove the trailing arm nut (A) and bolt (B).

Tightening torque :176.5 - 196.1 N·m (18.0 - 20.0 kgf·m, 130.2 - 144.7 lb·ft)

Kia EV6. Rear Cross Member

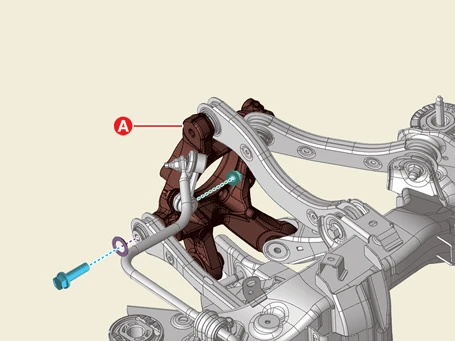

6.Remove the rear carrier (A) after removing the bolt, washer and nut.

Tightening torque :176.5 - 196.1 N·m (18.0 - 20.0 kgf·m, 130.2 - 144.7 lb·ft)

Kia EV6. Rear Cross Member

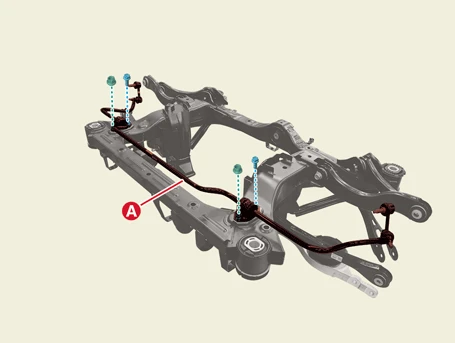

7.Remove the rear stabilizer bar (A) after removing the bolts and nuts.

Tightening torque :49.0 - 63.7 N·m (5.0 - 6.5 kgf·m, 36.2 - 47.0 lb·ft)

Kia EV6. Rear Cross Member

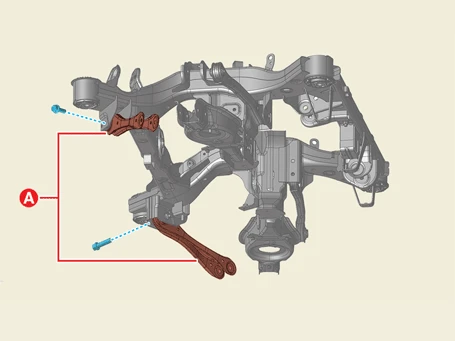

8.Remove the trailing arm (A) after removing the bolts.

Tightening torque :117.7 - 137.3 N·m (12.0 - 14.0 kgf·m, 86.8 - 101.3 lb·ft)

Kia EV6. Rear Cross Member

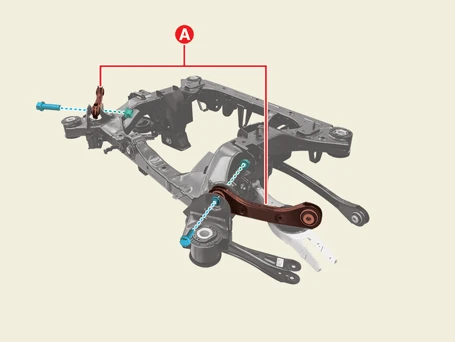

9.Remove the rear upper arm - rear (A) after removing the bolts and nuts.

Tightening torque :156.9 - 176.5 N·m (16.0 - 18.0 kgf·m, 115.7 - 130.2 lb·ft)

Kia EV6. Rear Cross Member

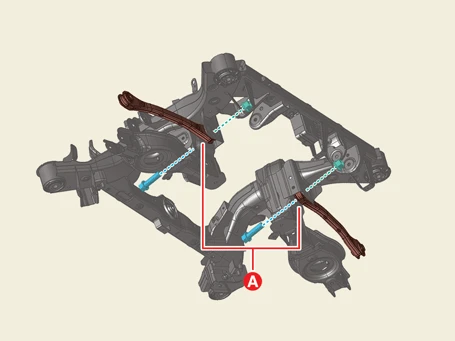

10.Remove the rear upper arm - front (A) after removing the bolts and nuts.

Tightening torque : 156.9 - 176.5 N·m (16.0 - 18.0 kgf·m, 115.7 - 130.2 lb·ft)

Kia EV6. Rear Cross Member

11.Remove the rear assist arm (A) bolts, plates and nuts.

Tightening torque :156.9 - 176.5 N·m (16.0 - 18.0 kgf·m, 115.7 - 130.2 lb·ft)

Kia EV6. Rear Cross Member

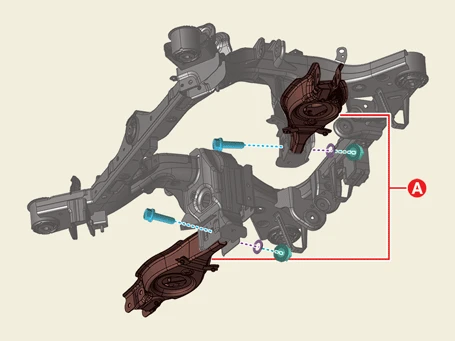

12.Remove the rear lower arm (A) after removing the bolts, plates and nuts.

Tightening torque :156.9 - 176.5 N·m (16.0 - 18.0 kgf·m, 115.7 - 130.2 lb·ft)

Kia EV6. Rear Cross Member

Installation

1.Install in the reverse order of removal.

Kia EV6. Rear Cross Member

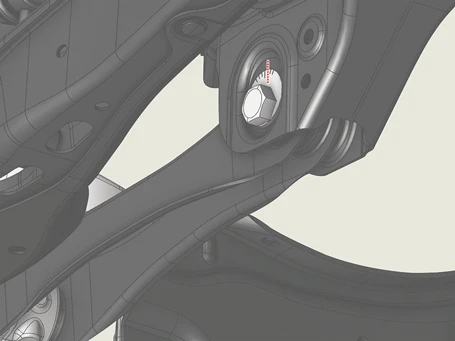

When tightening the nut, align the center of the bolt plate scale with the center of the guide.[Rear Assist Arm]

Kia EV6. Rear Cross Member

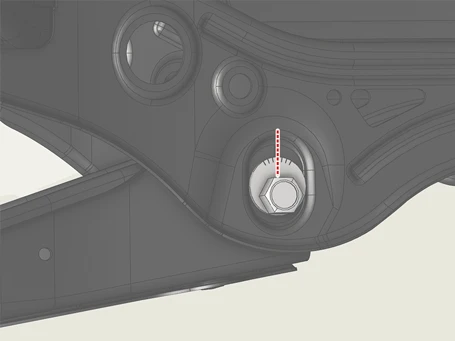

[Rear Lower Arm]

Kia EV6. Rear Cross Member

2.Check the alignment.(Refer to Alignment - "Repair Procedures")

Inspection

1.Check the bushing for wear or aging.

2.Check all bolts and nuts.
