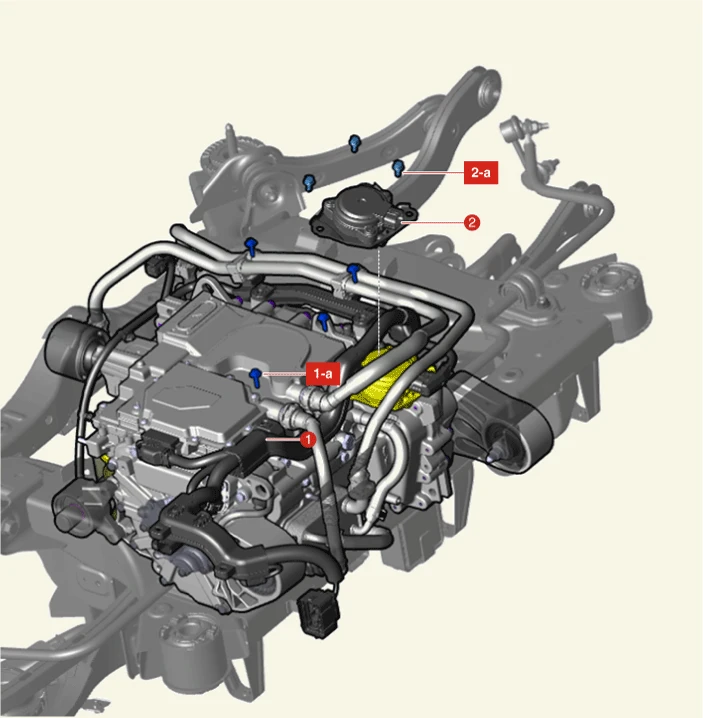

Component
1. Main Wiring Protector
1-a. 6.9 - 9.8 N·m (0.7 - 1.0 kgf·m, 5.1 - 7.2 lb·ft)
2. SBW(Shift By Wire) Actuator
2-a. 20.6 - 27.5 N·m (2.1 - 2.8 kgf·m, 15.2 - 20.3 lb·ft)
Removal
• When working on high voltage system, the work should be performed by technicians who have completed the relevant training. It is because that lack of knowledge of the high voltage system can lead to serious accidents due to electric shock or electric leakage.
• When working on high voltage system or related system, make sure that you are familiar and comply with the "Safety Precautions, Cautions and Warnings." If you do not comply with the instructions, serious accidents due to electric shock or leakage may occur.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedures.
1.Shut off the high voltage circuit.(Refer to Motor and Reduction Gear System - "High Voltage Shut-off Procedures")
2.Remove the rear motor and reduction gear assembly.(Refer to Motor and Reduction Gear System - "Rear Motor and Reduction Gear Assembly")

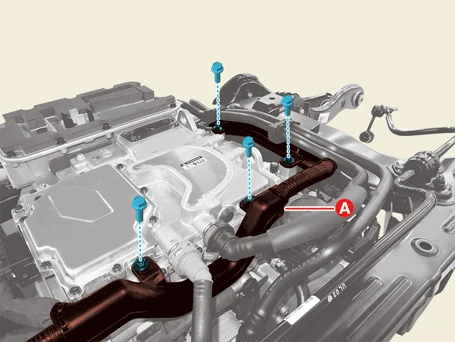

3.Separate the main wiring protector (A) after removing the bolts.
Tightening torque :6.9 - 9.8 N·m (0.7 - 1.0 kgf·m, 5.1 - 7.2 lb·ft)

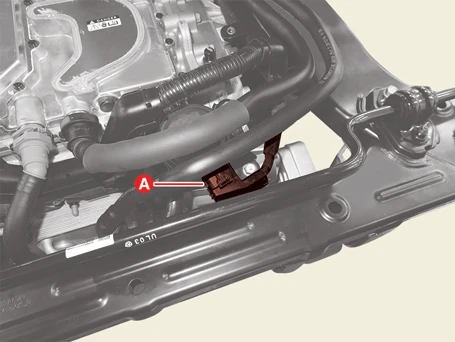

4.Disconnect the SBW (Shift By Wire) actuator connector (A).

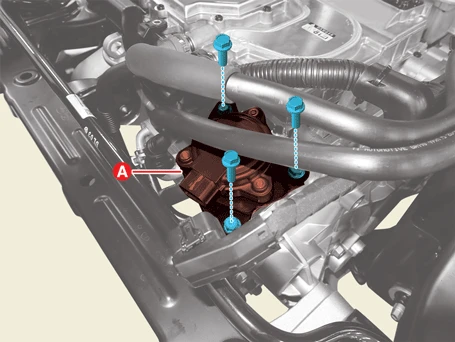

5.Remove the SBW actuator (A) after removing the bolts.
Tightening torque :20.6 - 27.5 N·m (2.1 - 2.8 kgf·m, 15.2 - 20.3 lb·ft)
Installation
• When working on high voltage system, the work should be performed by technicians who have completed the relevant training. It is because that lack of knowledge of the high voltage system can lead to serious accidents due to electric shock or electric leakage.
• When working on high voltage system or related system, make sure that you are familiar and comply with the "Safety Precautions, Cautions and Warnings." If you do not comply with the instructions, serious accidents due to electric shock or leakage may occur.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedures.
1.Install in the reverse order of removal.
