Kia EV6: Wheel Balance

Inspection

Wheel balance needs to be adjusted if the tires are unbalanced or after tire replacement or maintenance work has been performed.

Maximum rim unbalance weight : 2.12 oz (60 g)

Kia EV6. Wheel Balance

Kia EV6. Wheel Balance

• If the maximum unbalance weight over than 3.53 oz (100g), reassemble the wheel and tire, then perform the wheel balance adjustment.

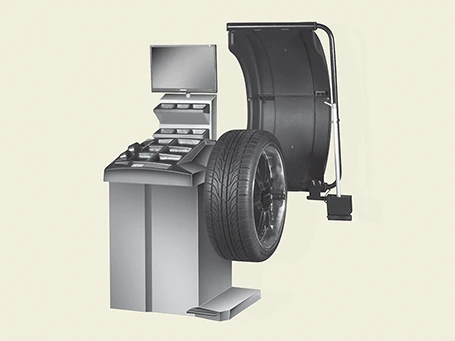

• Make sure that the wheel and tire install in the balancer securely.

• For details, refer to the instructions of each balancer.

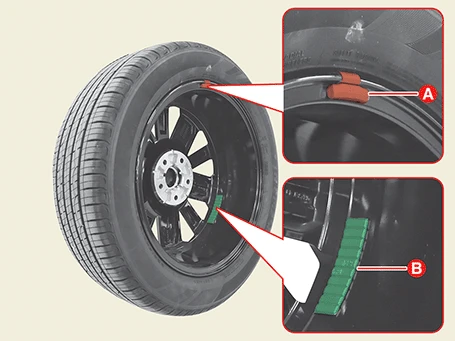

• Use flange type balance lead (A) or flat type balance lead (B) depending on wheel flange type.

Kia EV6. Wheel Balance
