Removal

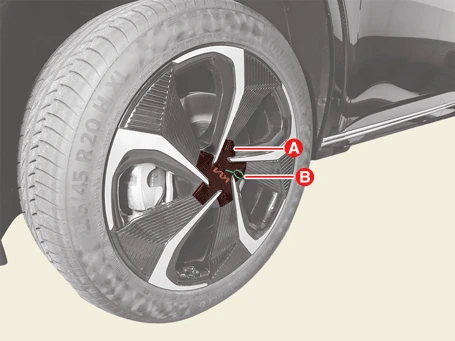

1.Remove the wheel cap (A). [If equipped]

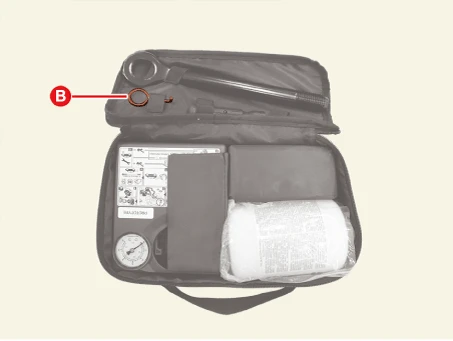

Use the wheel cap remover (B) included in the Tire Mobility Kit (TMK).

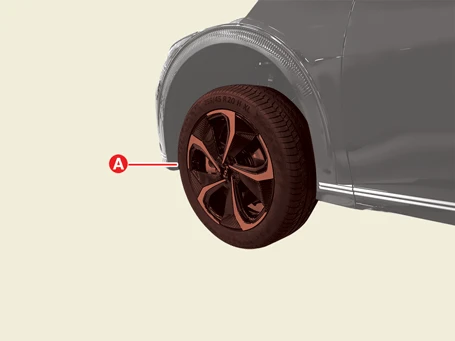

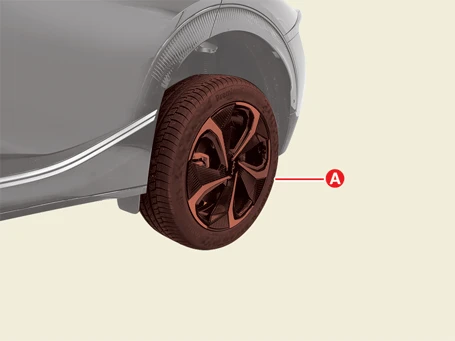

2.Remove the wheel and tire (A) after removing the nuts.

Tightening torque :107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)

[Front]

[Rear]

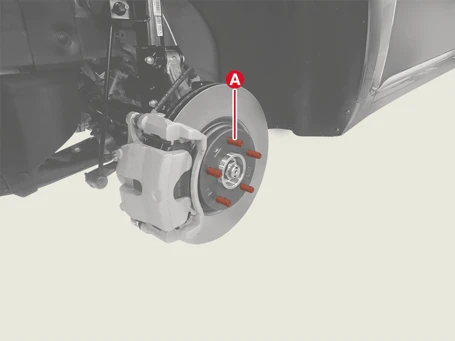

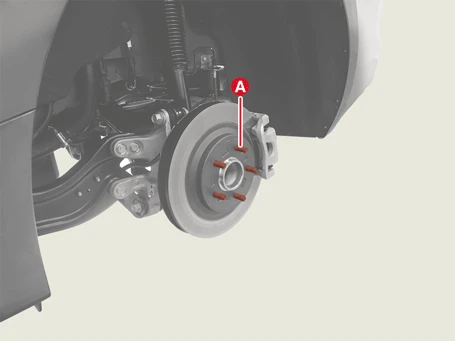

Be careful not to damage the hub bolts (A) when removing the wheel and tires.[Front]

[Rear]

Installation

1.Install the wheel and tire (A) after tightening the nuts.

Tightening torque :107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)

[Front]

[Rear]



• Be careful not to damage the hub bolts (A) when installing the wheel and tires.[Front]

[Rear]

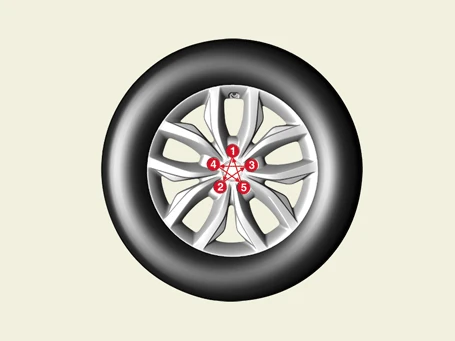

• Tighten the hub nuts as follows.

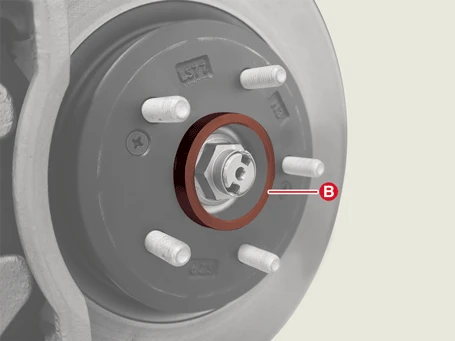

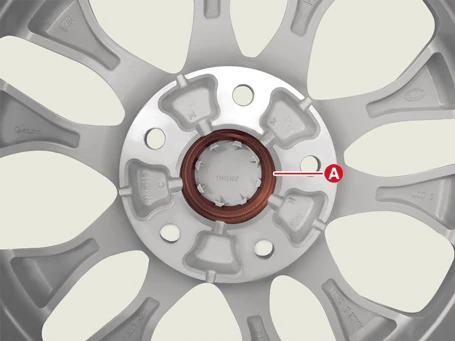

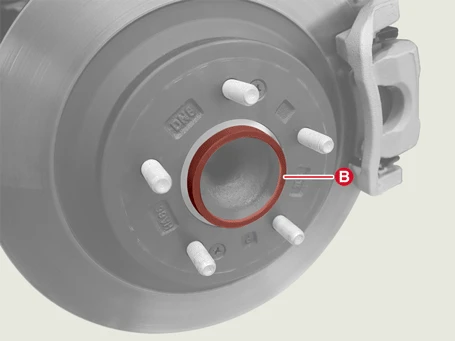

• Clean the wheel side (A) and hub side (B) rust or debris prior to installing the wheels and tires.

[Front]

[Rear]

Wheel Run-out Inspection

1.Jack up the vehicle and support with a jack securely.

2.Measure the wheel Run-out by using a dial indicator as illustration below.

Standard		Radial direction	Axial direction
Run-out	Aluminium Wheel	0.3 mm (0.0118 in.)	0.3 mm (0.0118 in.)

3.If measured value exceeds the standard value, replace the wheel.
