Kia EV6: ESC OFF Switch

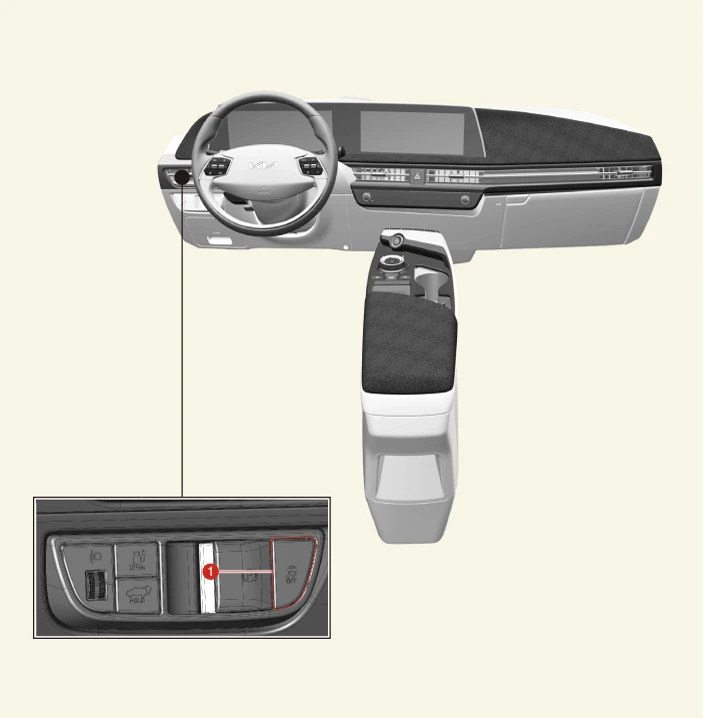

Components and Components Location

Kia EV6. ESC OFF Switch

1. ESC OFF Switch

Description

The ESC OFF switch is operated when the driver arbitrarily prohibits ESC control.Pressing the ESC OFF switch will illuminate the ESC OFF lamp.

Removal

1.Remove the rheostat.(Refer to Body Electrical System - "Rheostat")

Installation

1.Install in the reverse order of removal.

Troubleshooting

Troubleshooting Failure Diagnosis 1.In principle, ESC and TCS controls are prohibited in case of ABS failure. 2.When ESC or TCS fails, only the failed system control is prohibited. 3.The solenoid ...
