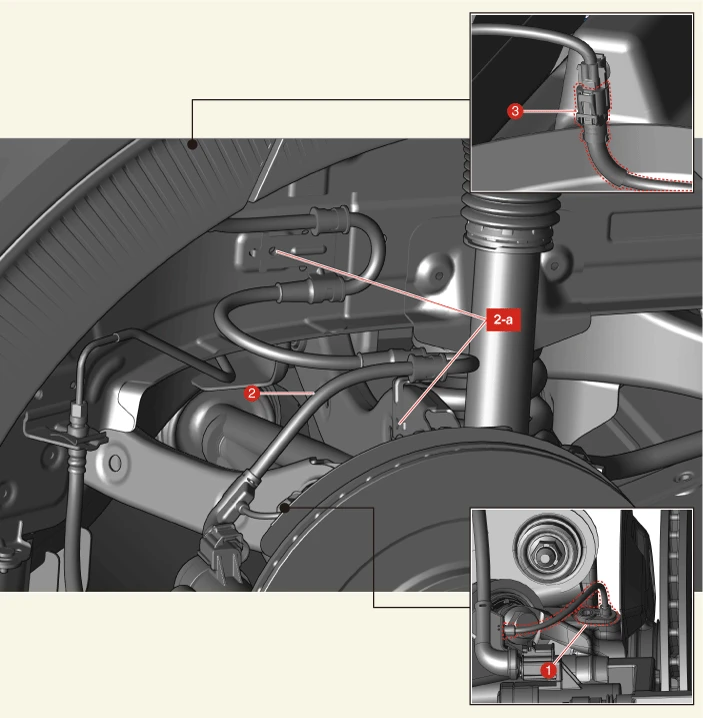

Components and Components Location

1. Rear Wheel Speed Sensor Connector
1-a. 8.8 - 13.7 N·m (0.9 - 1.4 kgf·m, 6.5 - 10.1 lb·ft)
2. Rear Wheel Speed Sensor Harness
2-a. 19.6 - 29.4 N·m (2.0 - 3.0 kgf·m, 14.5 - 21.7 lb·ft)
3. Rear Wheel Speed Sensor Connector
4. EPB Actuator Connector

Removal

1.Disconnect the battery negative ( - ) terminal and the service interlock connector.(Refer to Battery Control System - "Auxiliary 12 V Battery - 2WD")(Refer to Battery Control System - "Auxiliary 12 V Battery - 4WD")

2.Remove the rear wheel and tires.(Refer to Suspension System - "Wheel")

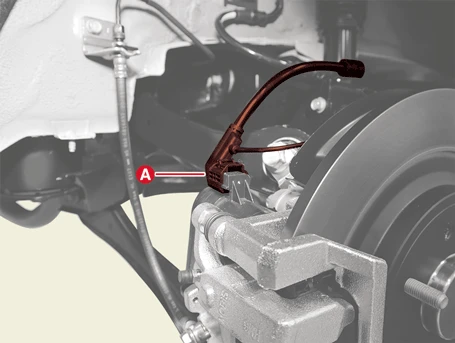

3.Disconnect the Electronic Parking Brake (EPB) actuator connector (A).

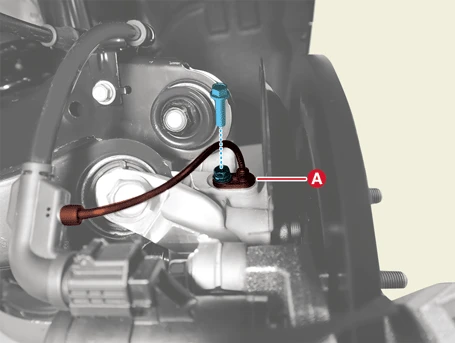

4.Remove the rear wheel speed sensor (A) after removing the bolt.

Tightening torque :8.8 - 13.7 N·m (0.9 - 1.4 kgf·m, 6.5 - 10.1 lb·ft)

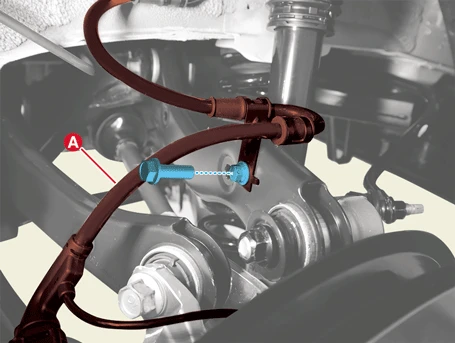

5.Separate the rear wheel speed sensor (A) from the rear upper arm after removing the bolt.

Tightening torque :19.6 - 29.4 N·m (2.0 - 3.0 kgf·m, 14.5 - 21.7 lb·ft)

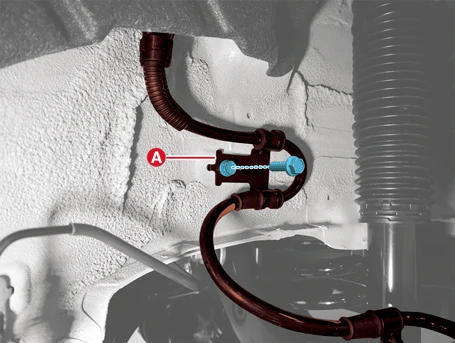

6.Remove the rear wheel speed sensor bracket (A) after removing the bolt.

Tightening torque :19.6 - 29.4 N·m (2.0 - 3.0 kgf·m, 14.5 - 21.7 lb·ft)

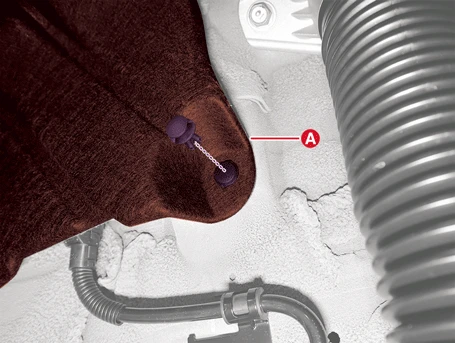

7.Separate the rear wheel guard (A) after removing the fastener.

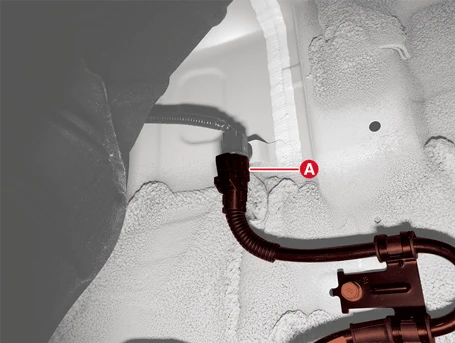

8.Remove the rear wheel speed sensor after disconnecting the connector (A).

Installation

1.Install in the reverse order of removal.

Inspection

1.Refer to the DTC Guide and perform the inspection.(Refer to DTC guide - "Component Inspection")(Refer to DTC guide - "Wiring Inspection")
