Kia EV6: Description and Operation

Description

System Component

• The high voltage battery system saves and supplies electric energy for driving the vehicle.

• It consists of the 24 battery modules, and Battery Management Unit (BMU), Cell Monitoring Unit (CMU) and Power Relay Assembly (PRA), etc. that control the module assembly.

Battery System Assembly Component

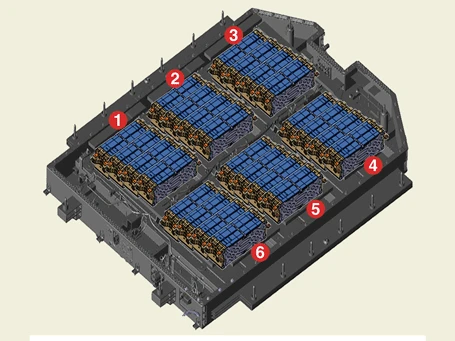

• Sub Battery Pack Assembly (Sub-BPA) - 6 packs- Pack Number

Kia EV6. Description and Operation

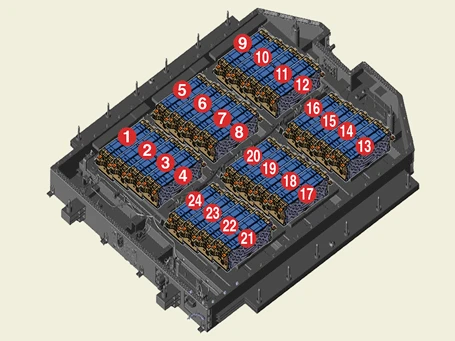

• Battery Module Assembly (BMA) - 24 modules (2P6S)- Module Number

Kia EV6. Description and Operation

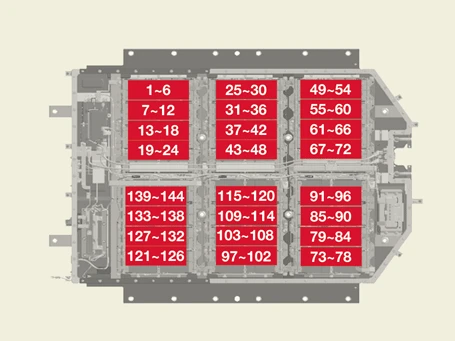

• Cell - 144- Cell Number

Kia EV6. Description and Operation
