Kia EV6: Power Tailgate Latch Assembly

Removal

Kia EV6. Power Tailgate Latch Assembly

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Remove the tailgate lid lower trim.(Refer to Body - "Tailgate Lid Trim")

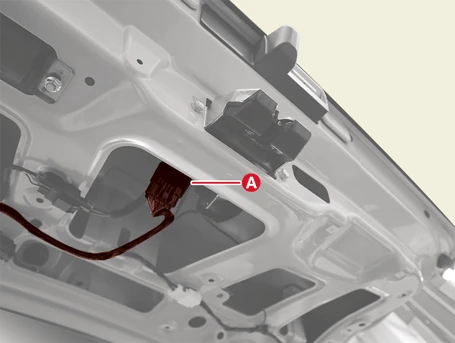

2.Disconnect the power tailgate latch connector (A).

Kia EV6. Power Tailgate Latch Assembly

3.Remove the power tailgate latch (A) after removing the bolts.

Tightening torque :6.9 - 8.8 N·m (0.7 - 0.9 kgf·m, 5.0 - 6.5 lb·ft, 61.0 - 77.9 lb·in)

Kia EV6. Power Tailgate Latch Assembly

Installation

Kia EV6. Power Tailgate Latch Assembly

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Install in the reverse order of removal.
