Kia EV6: Front Door Latch Assembly

Removal

Kia EV6. Front Door Latch Assembly

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Remove the front door module.(Refer to Front Door - "Front Door Module")

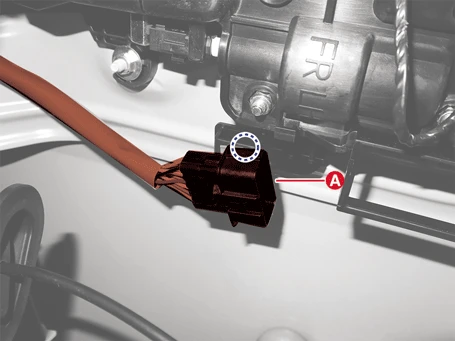

2.Disconnect the front door outside handle connector (A).

Kia EV6. Front Door Latch Assembly

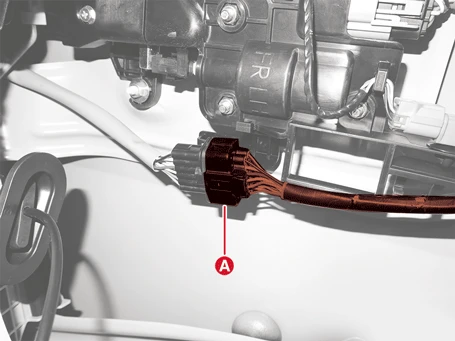

3.Disconnect the front door outside connector (A).

Kia EV6. Front Door Latch Assembly

Kia EV6. Front Door Latch Assembly

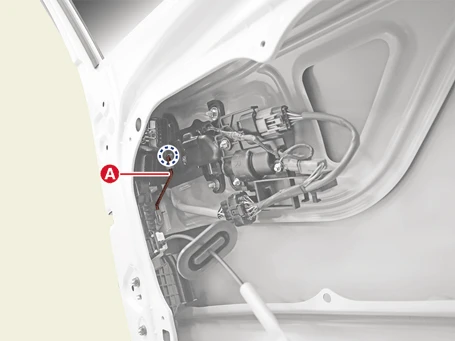

Clip position :

Kia EV6. Front Door Latch Assembly

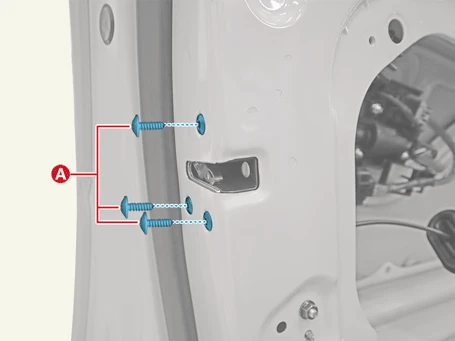

4.Remove the front door latch bolts (A).

Kia EV6. Front Door Latch Assembly

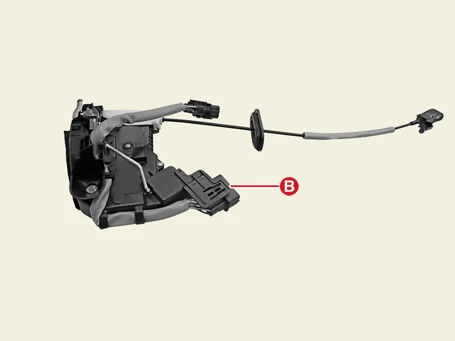

5.Remove the front door latch (B) after removing the front door latch rod (A).

Tightening torque :6.9 - 10.8 N·m (0.7 - 1.1 kgf·m, 5.1 - 8.0 lb·ft, 60.8 - 95.5 lb·in)

Kia EV6. Front Door Latch Assembly

Kia EV6. Front Door Latch Assembly

Installation

Kia EV6. Front Door Latch Assembly

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Install in the reverse order of removal.
