Kia EV6: Rear Wheel Guard

Removal

1.Remove the rear wheel and tires.(Refer to Suspension System - "Wheel")

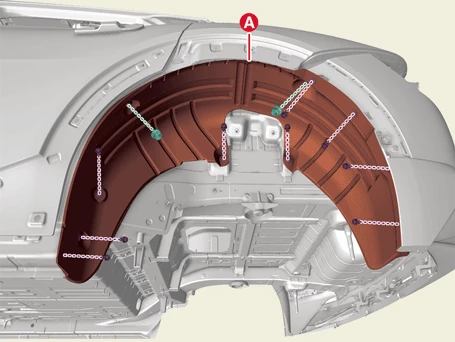

2.Remove the rear wheel guard (A) after removing the nuts and fasteners.

Kia EV6. Rear Wheel Guard

Installation

1.Install in the reverse order of removal.
