Kia EV6: Door Garnish

Removal

Front Door Garnish

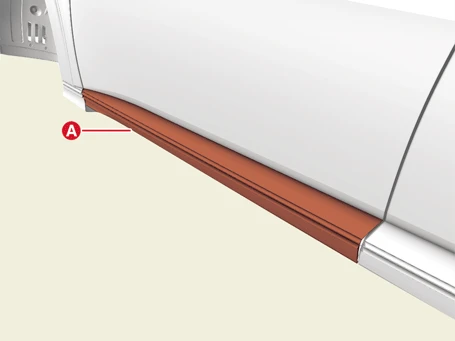

1.Remove the front door garnish (A).

Kia EV6. Door Garnish

Kia EV6. Door Garnish

Kia EV6. Door Garnish

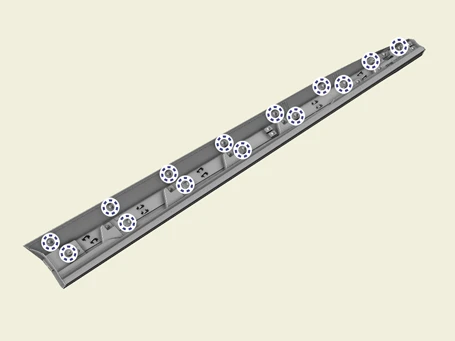

Clip position :

Kia EV6. Door Garnish

Rear Door Garnish

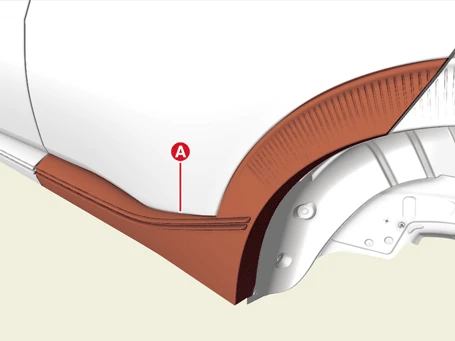

1.Remove the rear door garnish (A).

Kia EV6. Door Garnish

Kia EV6. Door Garnish

Kia EV6. Door Garnish

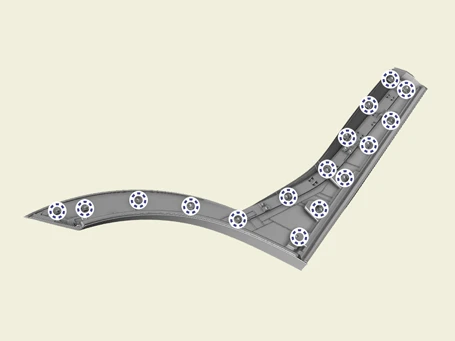

Clip position :

Kia EV6. Door Garnish

Installation

1.Install in the reverse order of removal.
