Kia EV6: Side Sill Molding

Removal

1.Open the front door and rear door.

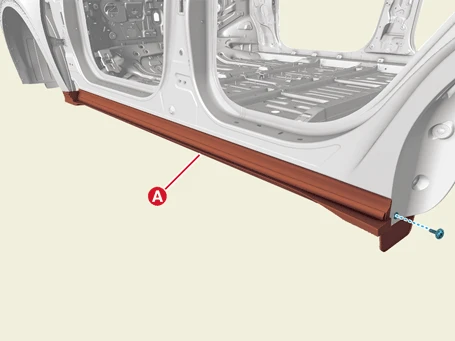

2.Removing the side sill molding (A) after removing the screw.

Kia EV6. Side Sill Molding

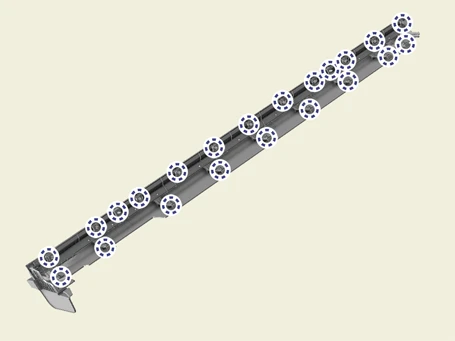

Clip position :

Kia EV6. Side Sill Molding

Installation

1.Install in the reverse order of removal.
