Adjustment

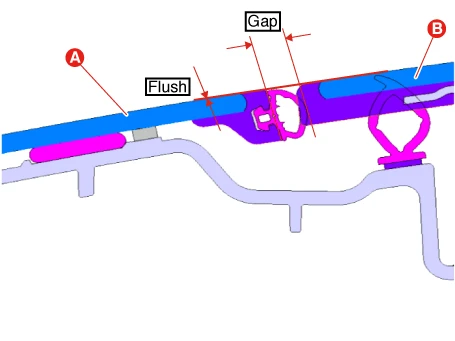

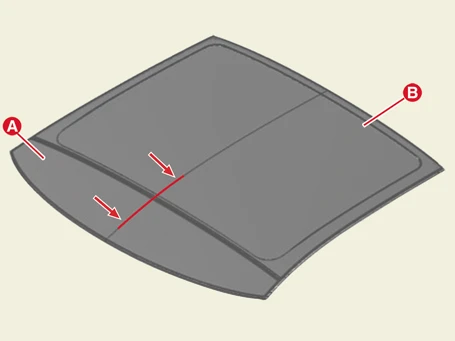

1.Inspect the gap and flush between the front glass (A) and the moving glass (B), and adjust if necessary.
[Front glass - Moving glass]
| Item | Gap [mm (in.)] | Flush [mm (in.)] |
| Front glass-moving glass | 56 - 58 (2.2 - 2.28) | -1 - 0.5 (-0.4 - 0.2) |
2.Open the moving glass completely by pressing the wide sunroof switch.

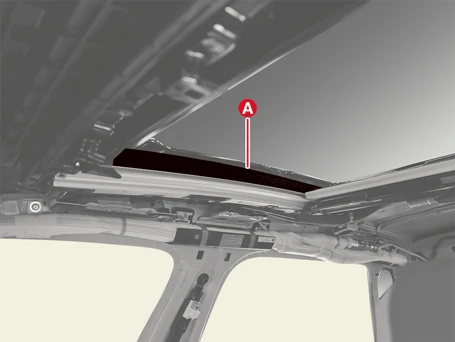

3.Remove the decoration cover (A) by using a remover.

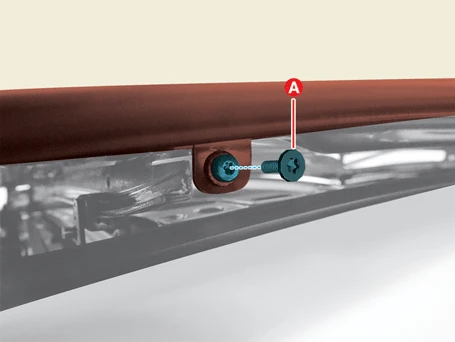

4.Close the moving glass and use a star wrench (T25) to loosen the glass screws (A) slightly to adjust the step, and then re-tighten.
Tightening torque :4.0 - 5.8 N·m (0.4 - 0.6 kgf·m, 2.9 - 4.3 lb·ft, 34.7 - 52.0 lb·in)

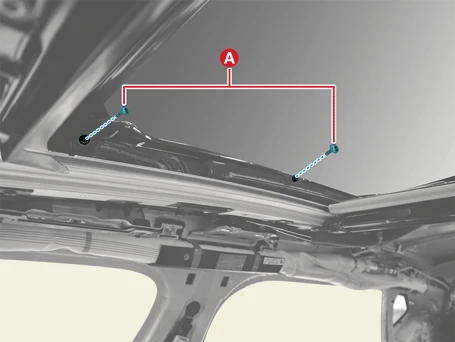

[Inside]
If you need to initialize the motor
1.When operating the vehicle for the first time after production.
2.If the initial value storage is erased or damaged due to power supply interruption or discharge during operation.
3.After operating with manual handle.
Emergency Operation
1.Emergency operation of the sunroof should never be performed except when the sunroof must be closed or opened due to abnormality in the motor.
2.After removing the roof trim, the sunroof must be closed or opened by using a hexagonal wrench and do not apply excessive force.
3.When the initialization is required, perform procedure below first to ensure proper sunroof operation, and then perform initialization procedure.
