Kia EV6: Console Armrest

Removal

1.Remove the rear console cover.(Refer to Floor Console - "Rear Console Cover")

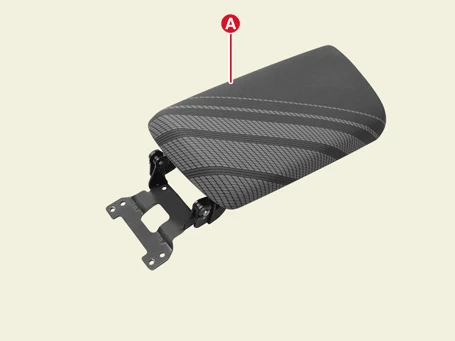

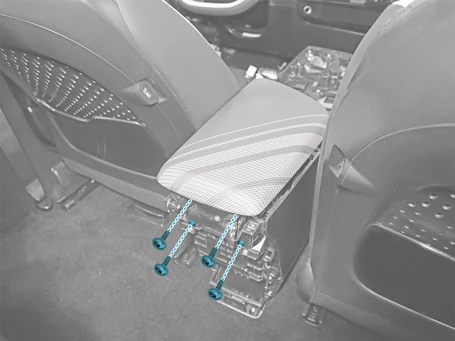

2.Remove the console armrest (A) after removing the screws.

Kia EV6. Console Armrest

Installation

1.Install in the reverse order of removal.
