Kia EV6: Rear Console Cover

Removal

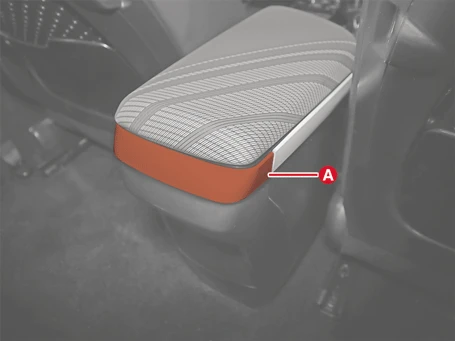

1.Remove the rear console upper garnish (A).

Kia EV6. Rear Console Cover

Kia EV6. Rear Console Cover

Kia EV6. Rear Console Cover

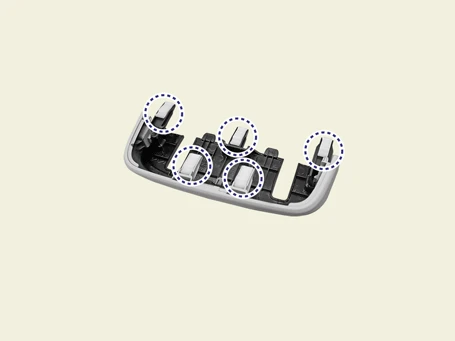

Clip position :

Kia EV6. Rear Console Cover

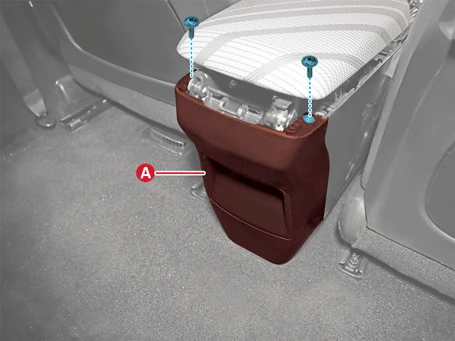

2.Remove the rear console cover (A) after removing the screws.

Kia EV6. Rear Console Cover

Kia EV6. Rear Console Cover

Kia EV6. Rear Console Cover

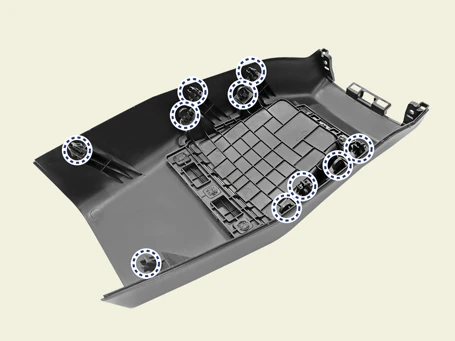

Clip position :

Kia EV6. Rear Console Cover

Installation

1.Install in the reverse order of removal.
