Kia EV6: Components and Components Location

Component

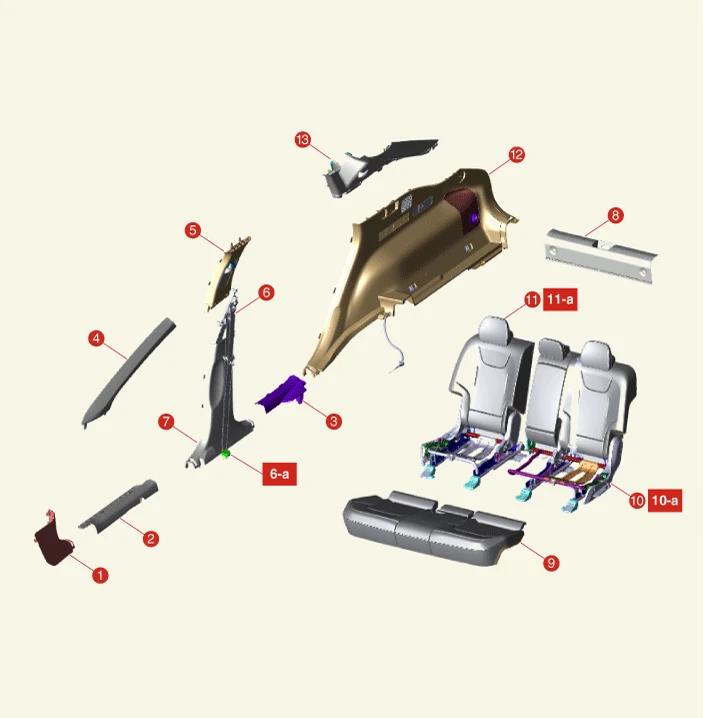

Kia EV6. Components and Components Location

1. Cowl Side Trim
2. Front Door Scuff Trim
3. Rear Door Scuff Trim
4. Front Pillar Trim
5. Center Pillar Upper Trim
6. Front Seat Belt
6-a. 39.2 - 53.9 N·m (4.0 - 5.5 kgf·m, 28.9 - 39.8 lb·ft)
7. Center Pillar Lower Trim
8. Rear Transverse Trim
9. Rear Seat Cushion Assembly
10. Rear Seat Back Assembly [LH]
10-a. 16.7 - 25.5 N·m (1.7 - 2.6 kgf·m, 12.3 - 18.8 lb·ft)
11. Rear Seat Back Assembly [RH]
11-a. 16.7 - 25.5 N·m (1.7 - 2.6 kgf·m, 12.3 - 18.8 lb·ft)
12. Luggage Side Trim
13. Rear Pillar Trim

Interior Trim

...

PREV

Front Pillar Trim

Removal 1.After inserting the tool, push and pull the clip (A) in the direction of the arrow and disassemble it. • Replace with the new clips when replacing the front ...
