Kia EV6: Front Pillar Trim

Removal

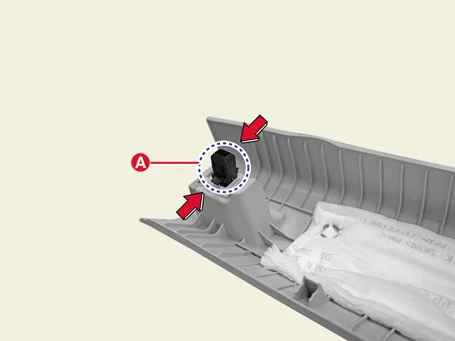

1.After inserting the tool, push and pull the clip (A) in the direction of the arrow and disassemble it.

Kia EV6. Front Pillar Trim

Kia EV6. Front Pillar Trim

• Replace with the new clips when replacing the front pillar trim.

• After removing the screw, remove the cap and replace the clip.

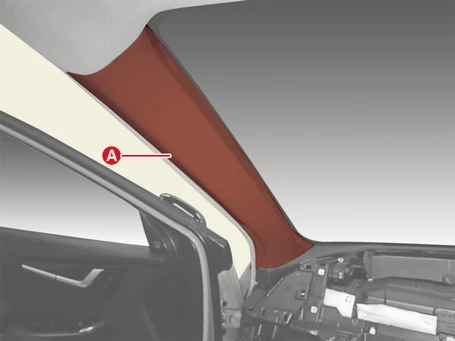

2.Remove the front pillar trim (A).

Kia EV6. Front Pillar Trim

Kia EV6. Front Pillar Trim

Kia EV6. Front Pillar Trim

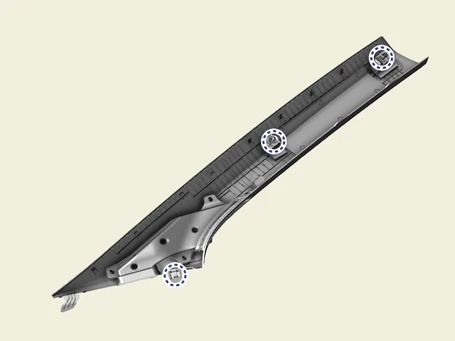

Clip position :

Kia EV6. Front Pillar Trim

Installation

1.Install in the reverse order of removal.

    Previous pageComponents and Components Location
