Removal
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
[Standard]
1.Remove the front seat shield outer cover.(Refer to Front Seat - "Front Seat Shield Outer Cover")
2.Remove the front seat shield inner cover.(Refer to Front Seat - "Front Seat Shield Inner Cover")

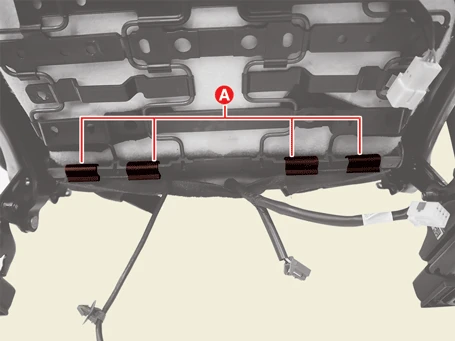

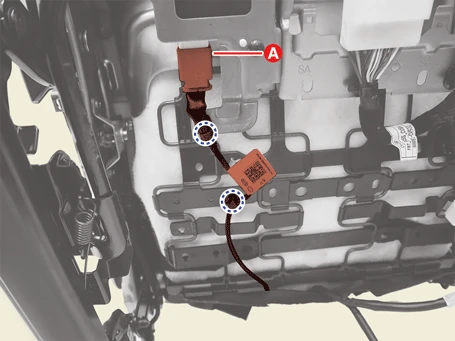

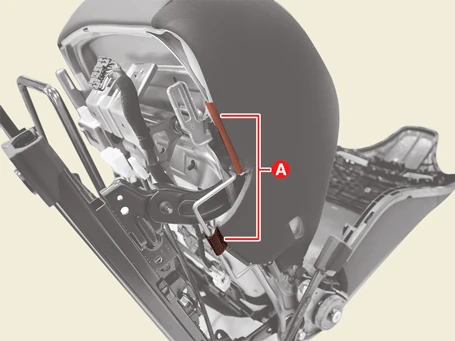

3.Disconnect the connectors (A) connected to the front seat lower.

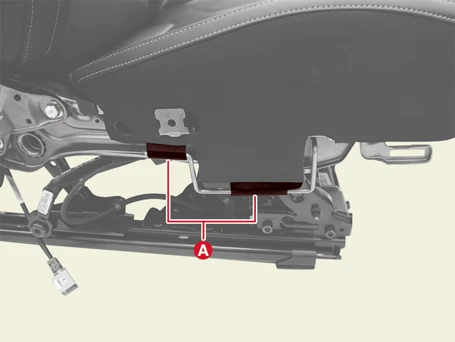

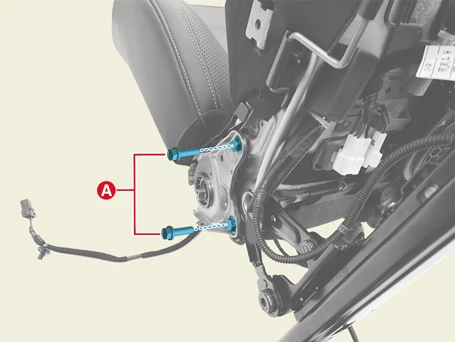

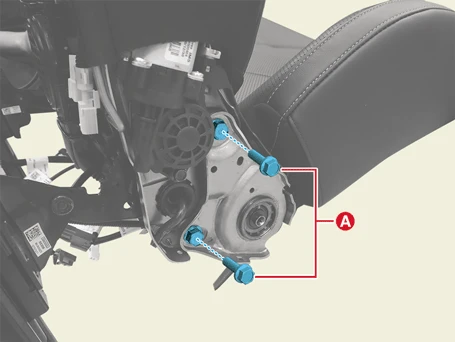

4. Remove the front seat back assembly after removing the front seat frame bolts (A).
[Left]
[Right]

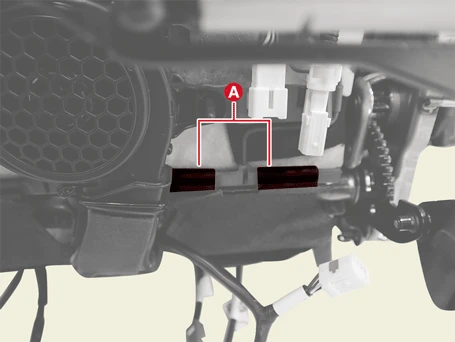

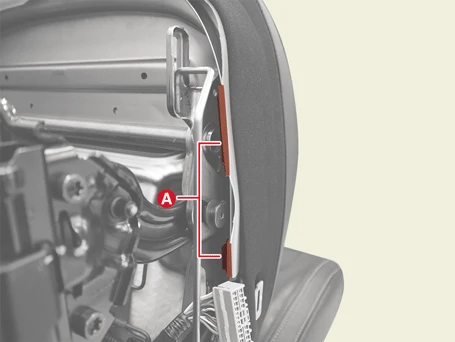

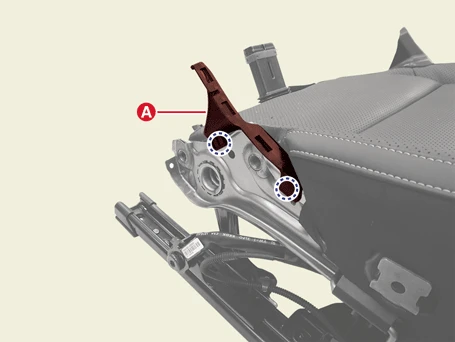

5.Remove the protectors (A).
[Front]
[Rear]
[Left]
[Right]

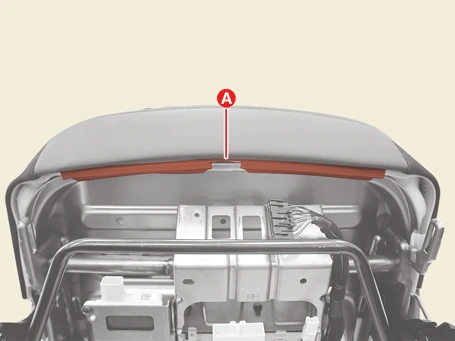

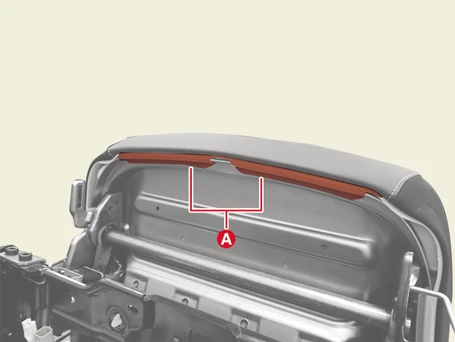

6.Remove the front seat cushion inner cover (A).

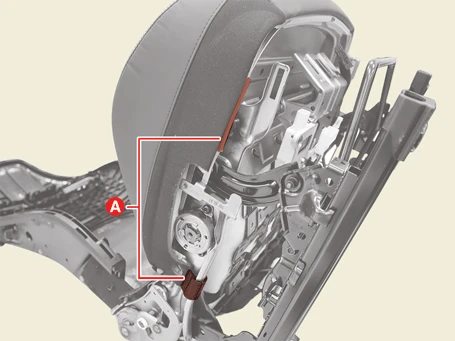

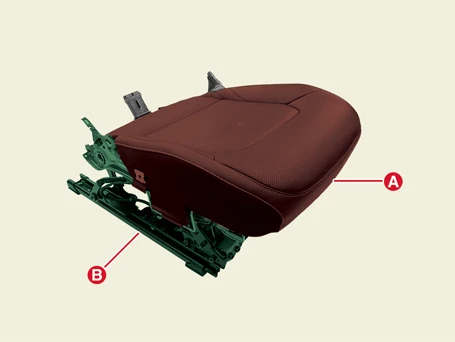

7.Remove the front seat cushion assembly (A) from the front seat cushion frame (B).

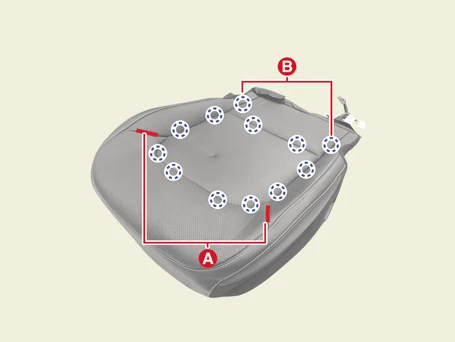

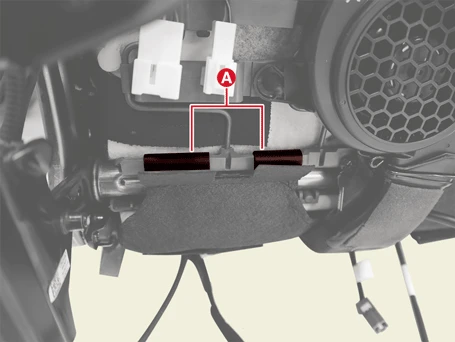

8.Remove the velcro tape (A) and hog clips (B) from the inside of the front seat cushion cover.

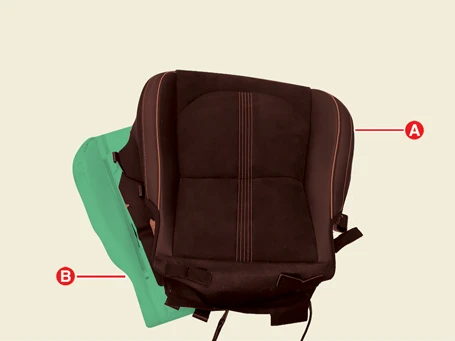

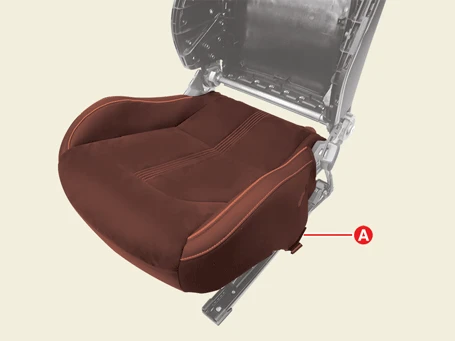

9.Remove the front seat cushion cover (A) from the front seat cushion pad (B).
[Sports]
1.Remove the front seat shield outer cover.(Refer to Front Seat - "Front Seat Shield Outer Cover")
2.Remove the front seat shield inner cover.(Refer to Front Seat - "Front Seat Shield Inner Cover")

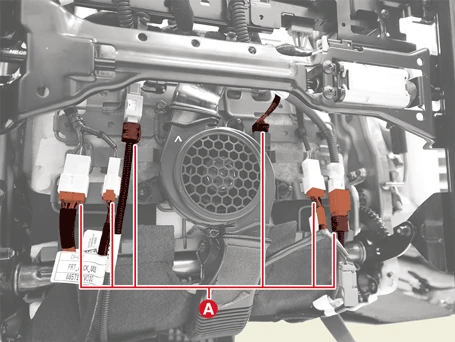

3.Disconnect the front seat cushion heat connectors (A).

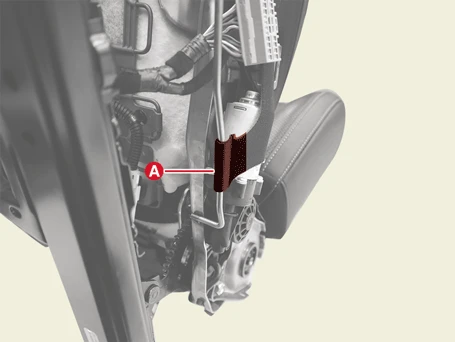

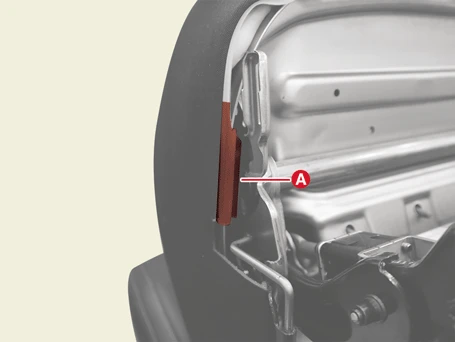

4.Remove the front seat cushion protector (A).
[Front]
[Rear]
[Left]
[Right]
5.Remove the front seat cushion assembly (A) from the front seat cushion frame.

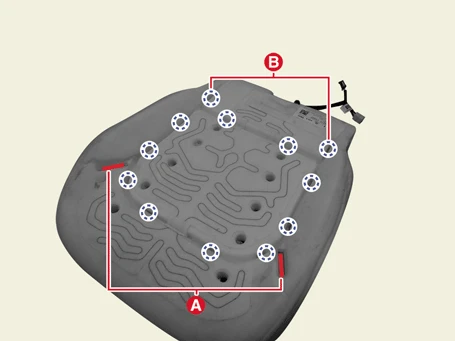

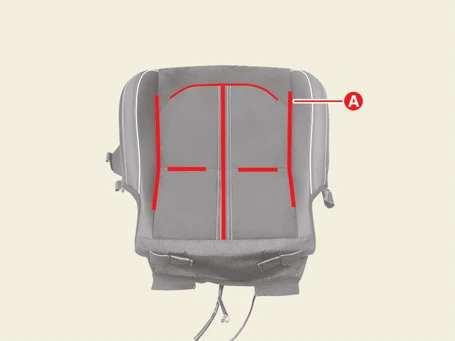

6.Remove the velcro tape (A) from the inside of the front seat cushion cover.
7.Remove the front seat cushion cover (A) from the front seat cushion pad (B).
Installation
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Install in the reverse order of removal.
