Removal



• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Remove the rear seat cushion assembly.(Refer to Rear Seat - "Rear Seat Assembly")

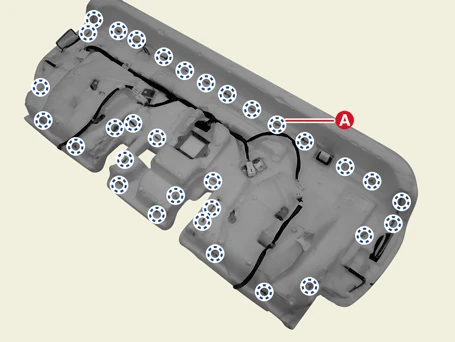

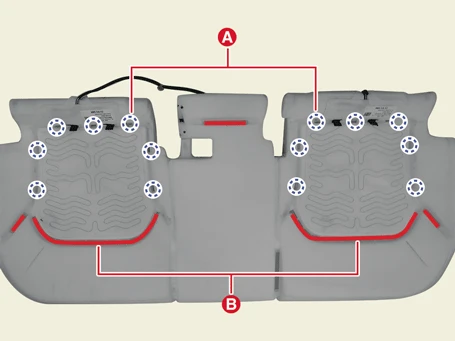

2.Remove the rear seat cushion cover hog ring clips (A) and velcro tape (B).



Be careful not to leave pads, insert wires and applix.

[Rear]

[Front]

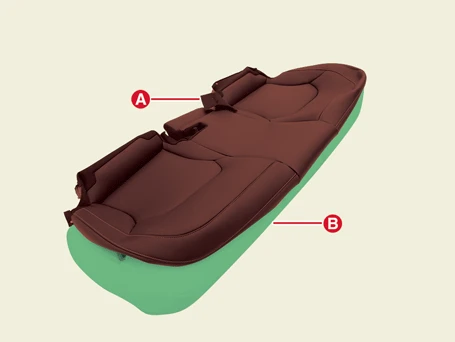

3.Remove the rear seat cushion cover (A) from the rear seat cushion pad (B).

Installation



• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Install in the reverse order of removal.



Pull the cover evenly before assembling the hog ring clip to prevent fine wrinkles on the cover.
