Replacement
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
[LH]
1.Remove the rear seat back armrest.(Refer to Rear Seat - "Rear Seat Back Armrest")

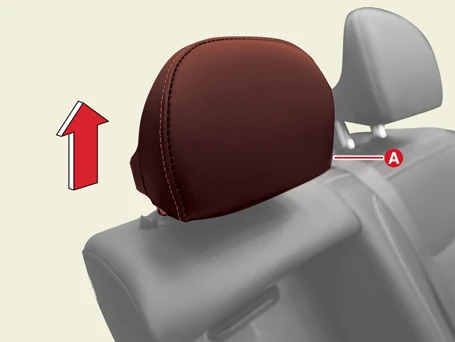

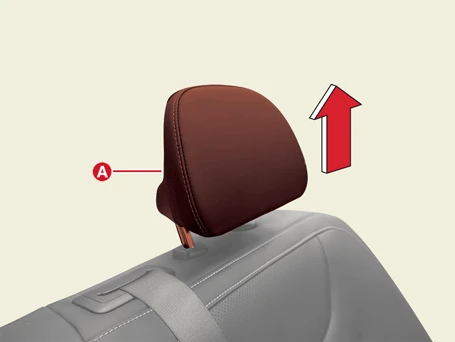

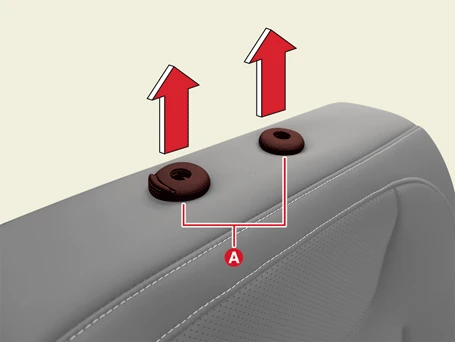

2.Remove the rear seat headrest (A) in the direction of the arrow after pressing the lock pin.

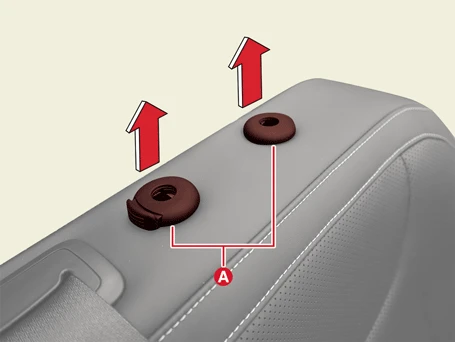

3.Remove the headrest guides (A) in the direction of the arrow.

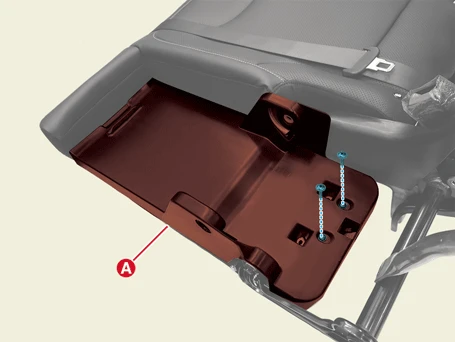

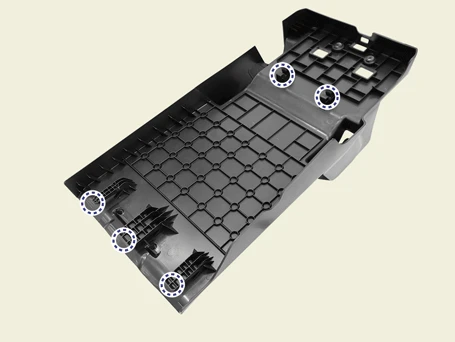

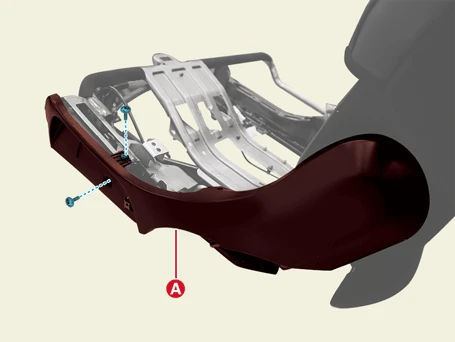

4.Remove the rear seat armrest board (A) after removing the screws.
5.Remove the rear seat recliner lever.

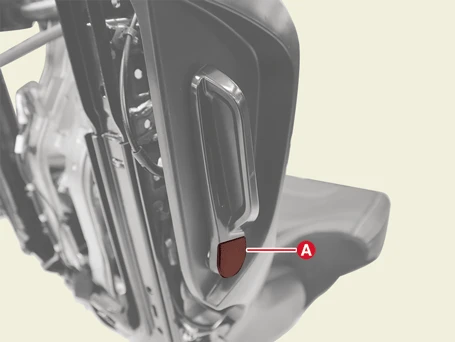

(1)Remove the rear seat recliner lever cap (A).

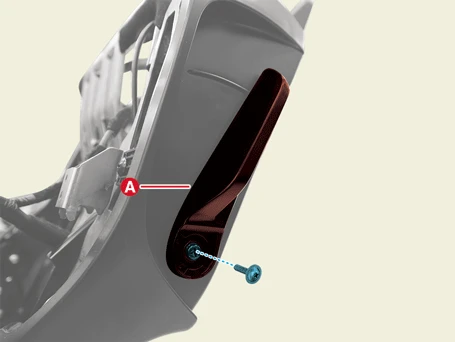

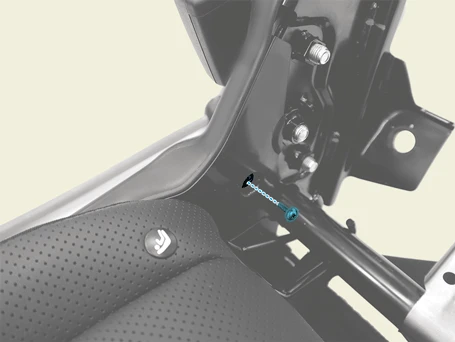

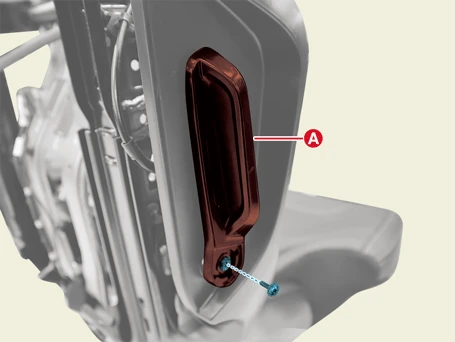

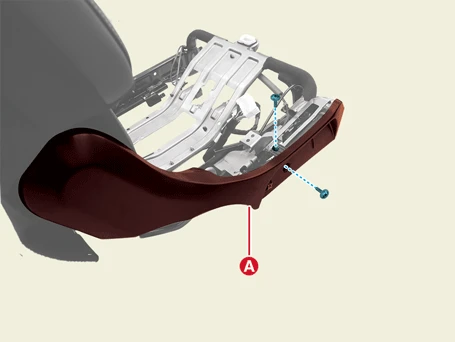

(2)Remove the rear seat recliner lever (A) after removing the screw.

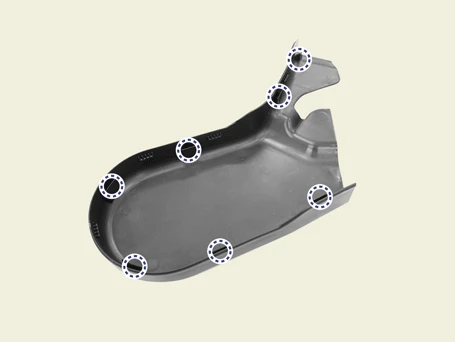

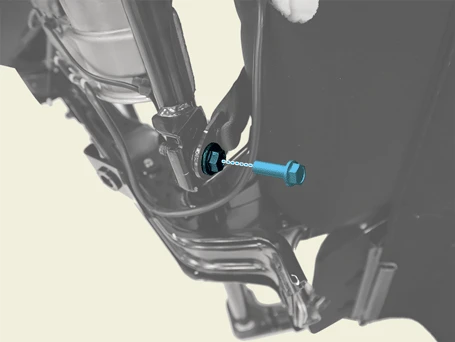

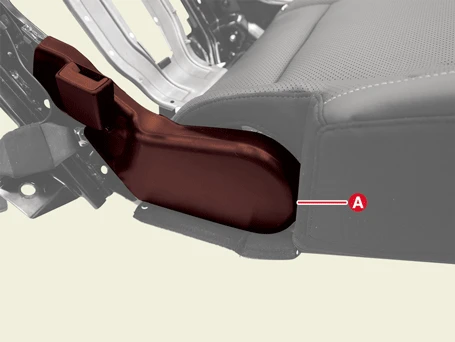

6.Remove the reear seat shield outer cover (A) after removing the screws.
7.Remove the rear seat center seat belt (A) after removing the bolt.

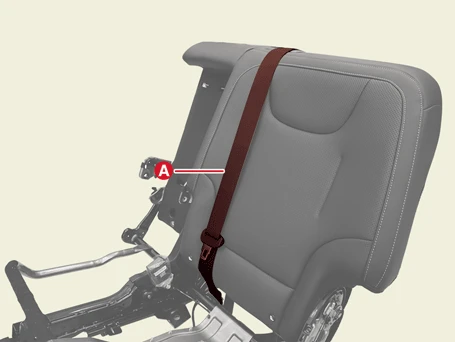

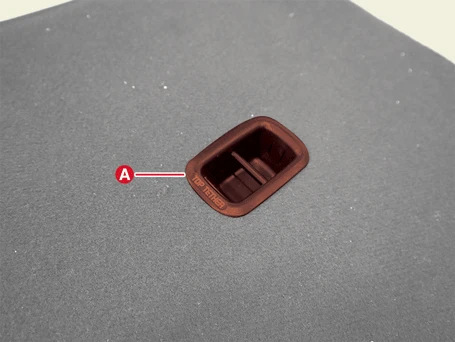

8.Remove the tether garnish (A).

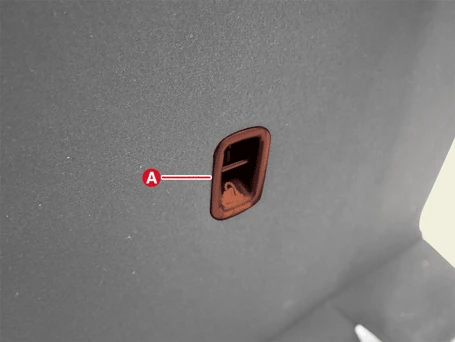

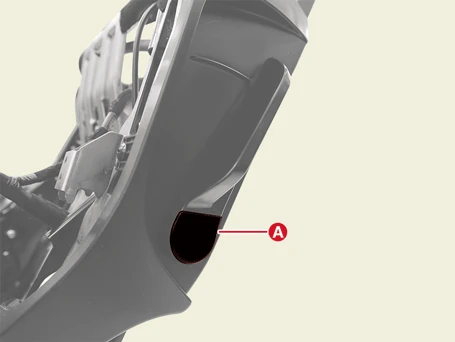

9.Remove the rear seat back cover protector (A).

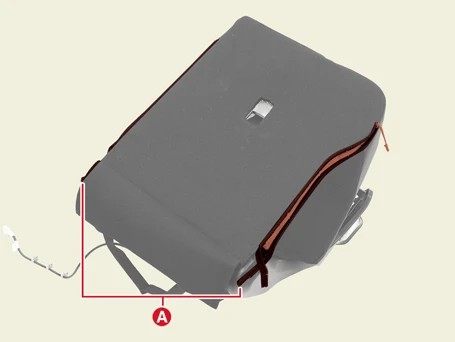

10.Open the rear seat back cover zipper (A).

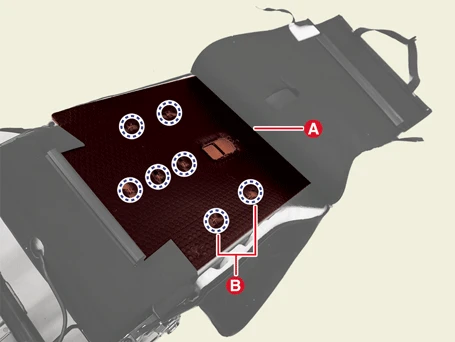

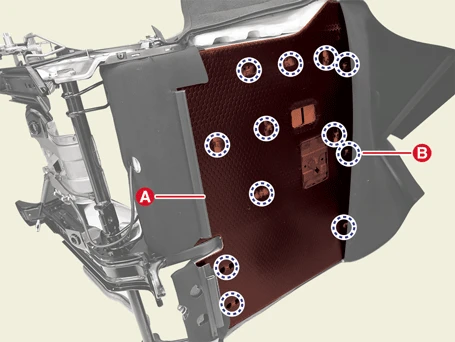

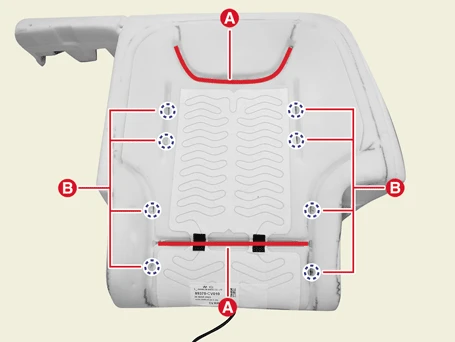

11.Remove the rear seat back board (A) after removing the hog rings (B).

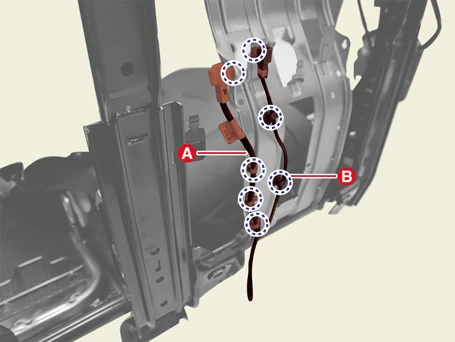

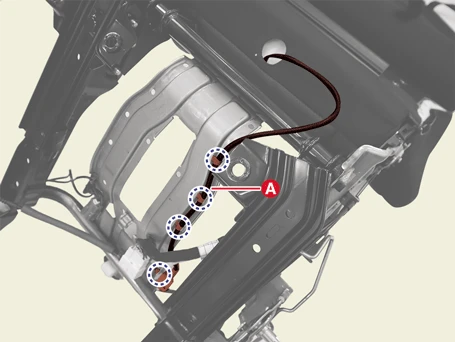

12.Remove the rear seat heating harness (A,B).

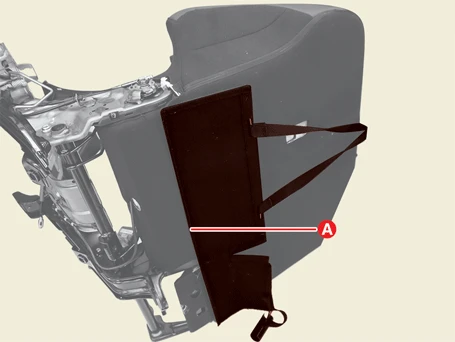

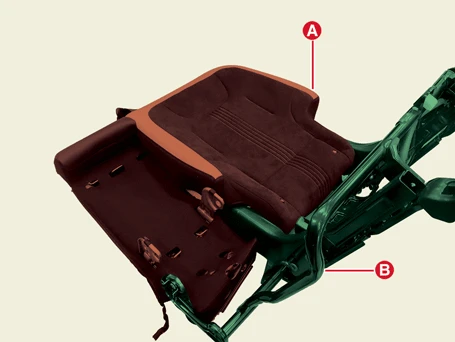

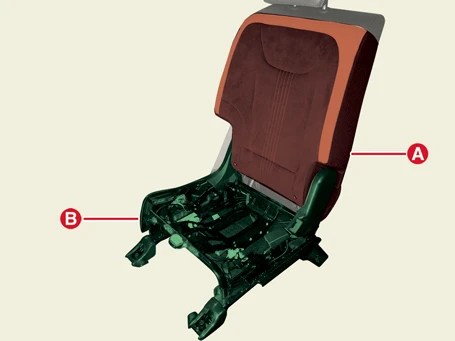

13.Remove the rear seat back assembly (A) from the rear seat back frame (B).

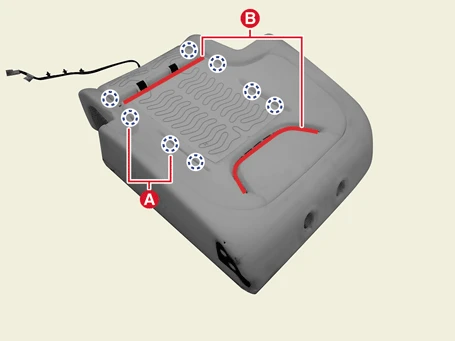

14.Remove the velcro tape (A) and hog rings (B).

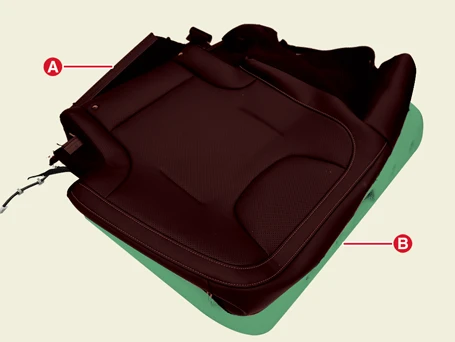

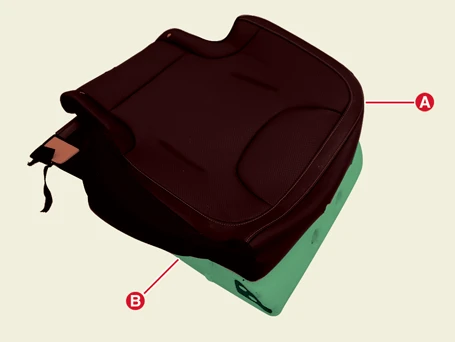

15.Remove the rear seat back cover (A) from the rear seat back pad (B).
[RH]
1.Disconnect the battery negative ( - ) terminal and the service interlock connector.(Refer to Battery Control System - "Auxiliary 12 V Battery - 2WD")(Refer to Battery Control System - "Auxiliary 12 V Battery - 4WD")
2.Remove the rear seat back assembly [RH].(Refer to Rear Seat - "Rear Seat Assembly")
3.Remove the rear seat headrest (A) in the direction of the arrow after pressing the lock pin.

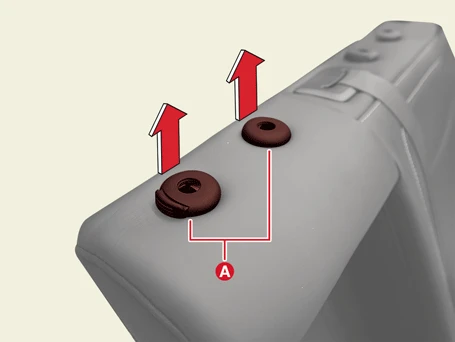

4.Remove the headrest guides (A) in the direction of the arrow.
5.Remove the rear seat recliner lever.
(1)Remove the rear seat recliner lever cap (A).
(2)Remove the rear seat recliner lever (A) after removing the screw.
6.Remove the rear seat shield outer cover (A) after removing the screws.
7.Remove the rear seat shield inner cover (A) after removing the screw.
8.Remove the tether garnish (A).
9.Open the rear seat back cover zipper (A).

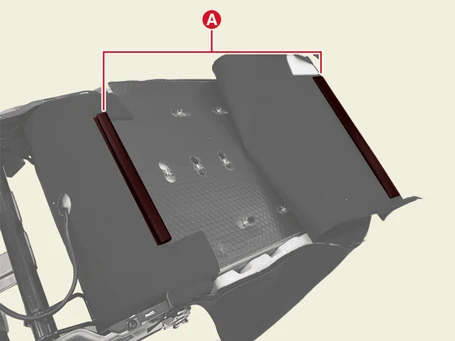

10.Remove the rear seat back cover protectors (A).

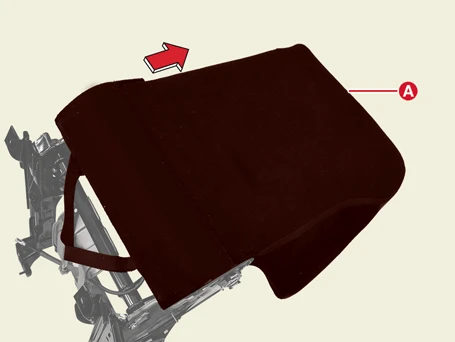

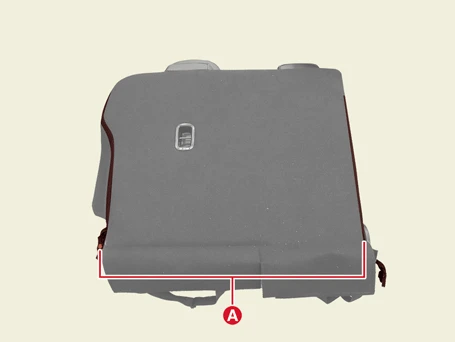

11.Open the rear seat back cover (A) in the direction of the arrow after opening the zipper on both sides.
12.Remove the rear seat back board (A) after removing the hog rings (B).

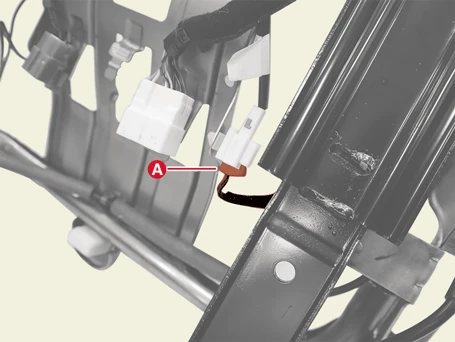

13.Disconnect the rear seat heater connector (A).
14.Remove the rear seat heat line (A).
15.Remove the rear seat back aseembly (A) from the rear seat back frame (B).
16.Remove the rear seat back cover velcro tape (B) and hog rings (A).
17.Remove the seat back cover (A) from the seat back pad (B).
Installation
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Install in the reverse order of removal.
