Kia EV6 (CV) 2022–2025 Workshop Manual

Body (Interior and Exterior) / Front Seat Belt / Height Adjust /

Kia EV6: Height Adjust

Removal

1.Remove the center pillar upper trim.(Refer to Interior Trim - "Center Pillar Trim")

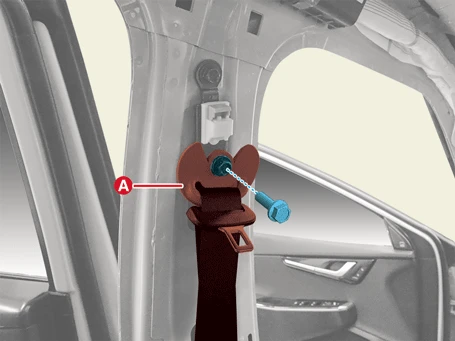

2.Remove the front seat belt (A) after removing the upper anchor bolt.

Tightening torque : 39.2 - 53.9 N·m (4.0 - 5.5 kgf·m, 28.9 - 39.8 lb·ft)

Kia EV6. Height Adjust

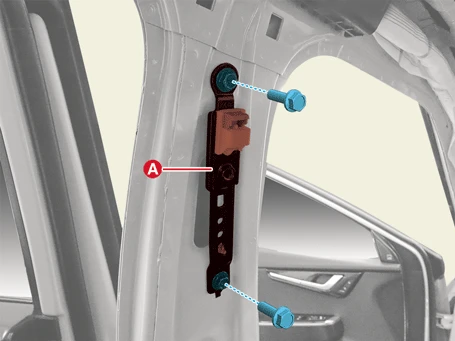

3.Remove the height adjust (A) after removing the bolts.

Tightening torque : 39.2 - 53.9 N·m (4.0 - 5.5 kgf·m, 28.9 - 39.8 lb·ft)

Kia EV6. Height Adjust

Installation

1.Install in the reverse order of removal.
