Removal
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Remove the main crash pad assembly.(Refer to Body - "Main Crash Pad Assembly")

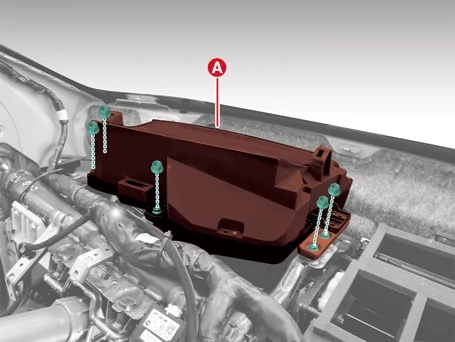

2.Remove the augmented reality head up display (AR HUD) unit (A) after removing the nuts.

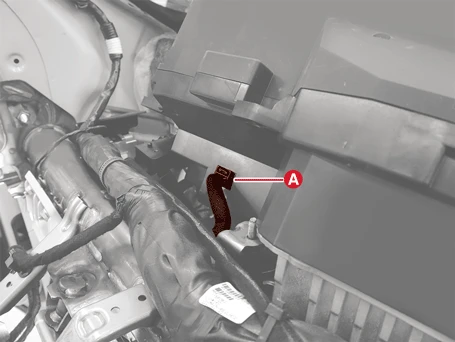

3.Disconnect the AR HUD unit connector (A).
Installation
• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
1.Install in the reverse order of removal.
Inspection
If a part of the head up display footage is distorted or it is not at eye level with the driver a KDS can be used to perform calibration.1.Calibration is required
– After replacing the head-up display unit
– When the footage is distorted after replacing the windshield (double vision removal film built-in glass)
– When the HUD mounted main crash pad is removed/installed or replaced
– When the image setting location of the HUD unit is not at eye level of the driver resulting in out of focus image
2.Calibration items
| No | Footage calibration functions |
| 1 | Horizontal rotation : Set the horizontal rotation on the screen |
| 2 | Upward/downward : Set the upward and downward directions on the screen. |
| 3 | Slope (up / down) : Set the Slope on the screen. |
| 4 | Parallel slope : Set the parallel slope on the screen. |
| 5 | Vertical movement : Set the Vertical movement on the screen. |
| 6 | Slope (left / right) : Set the Slope on the screen. |
| 7 | Width : Set the width of the screen. |
| 8 | Height : Set the height of the screen. |
| 9 | Initialization: Return to previous status before calibration. |
3.Process of calibration
(1)Locate the vehicle on a flat plane for accurate adjustment.
(2)Make sure that there are no foreign materials on the windshield.
(3)Perform the calibration with the KDS.

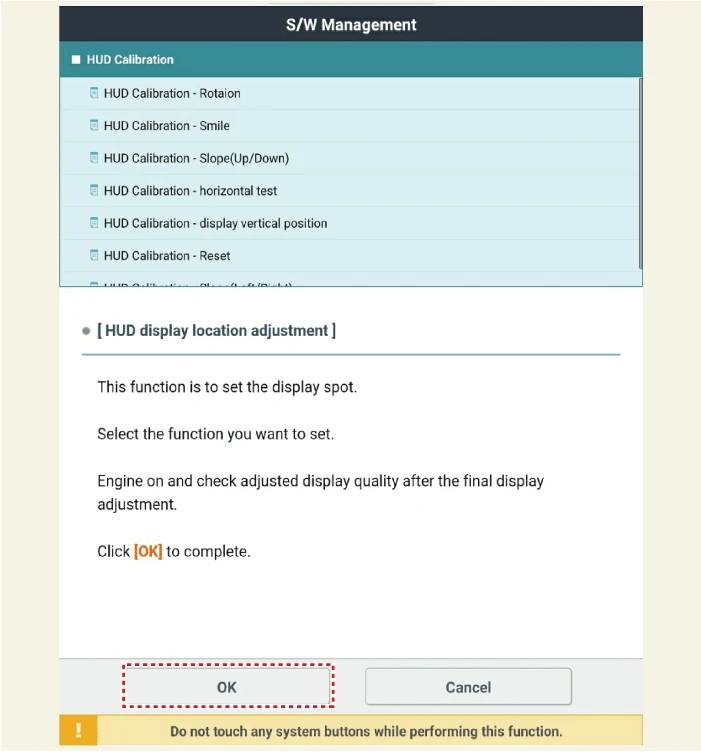

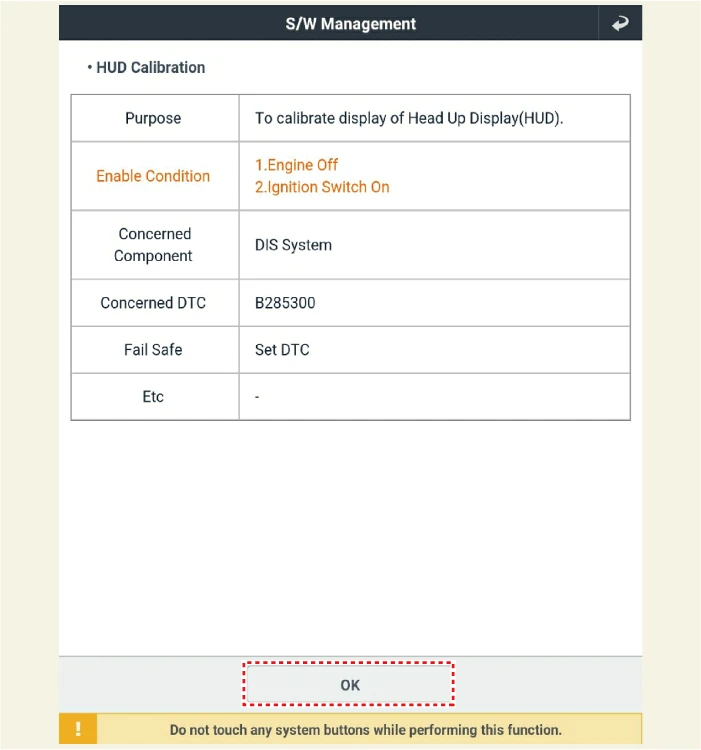

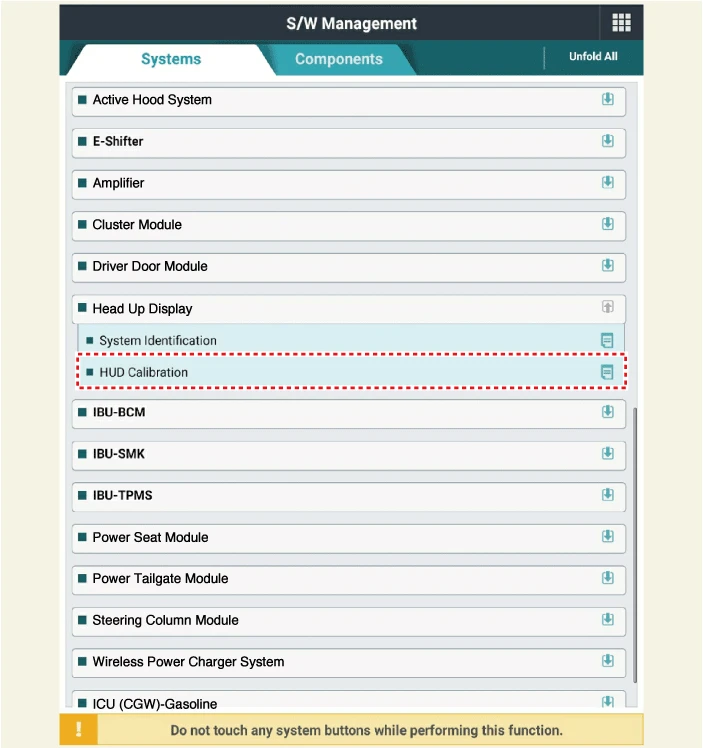

(4)Under additional functions select 'HUD calibration'.
(5)Before 'calibration', perform 'HUD calibration - initialization'.
• 'HUD calibration - initialization' must be performed prior to 'calibration'.

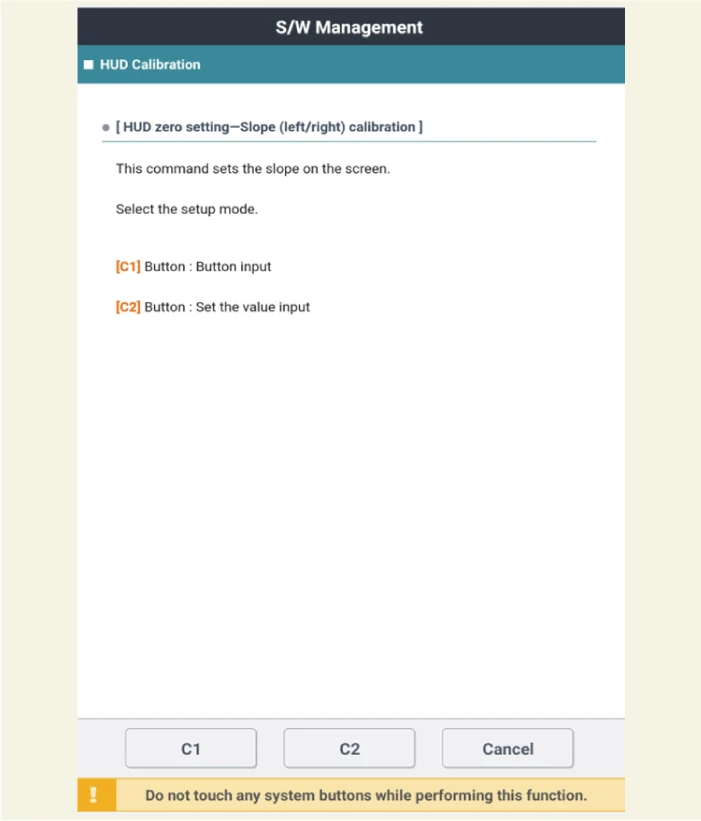

(6)Select the necessary calibration items and perform 'HUD calibration'.
