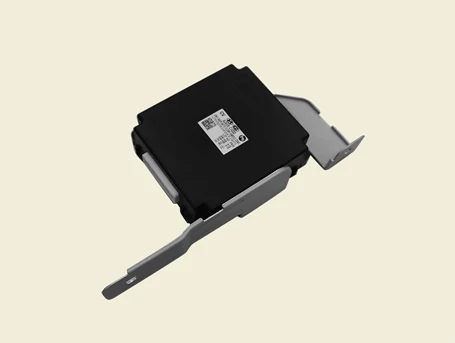

Kia EV6: Auto Flush Door Handle Control Unit

On Vehicle Inspection

Diagnosis with KDS

1.The auto flush door handle control unit can be more quickly diagnosed for problems with the KDS (Refer to "DTC guide").

(1)Self diagnosis : Inspect the Diagnostic Trouble Code (DTC) with the KDS.(Refer to DTC guide when fault code is found.)

Kia EV6. Auto Flush Door Handle Control Unit

Refer to the KDS screen for operating conditions and details

Removal

Kia EV6. Auto Flush Door Handle Control Unit

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Remove the rear seat assembly.(Refer to Body - "Rear Seat Assembly")

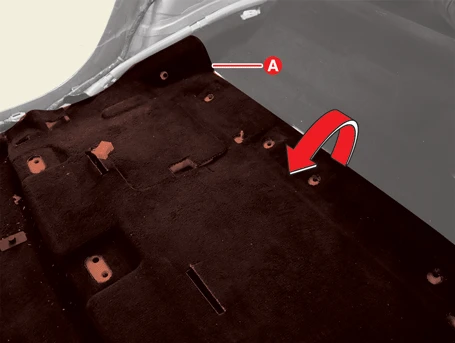

2.Separate the floor carpet (A) in the direction of the arrow.

Kia EV6. Auto Flush Door Handle Control Unit

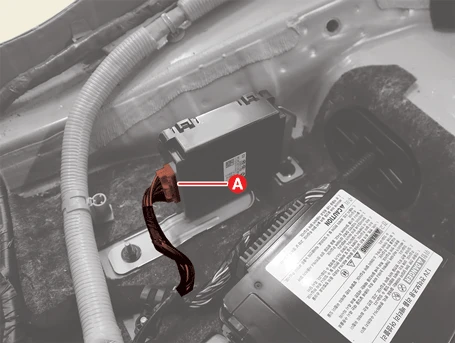

3.Disconnect the auto flush door handle control unit connector (A).

Kia EV6. Auto Flush Door Handle Control Unit

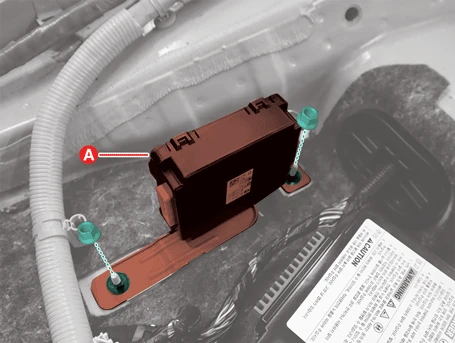

4.Remove the auto flush door handle control unit (A) after removing the nuts.

Kia EV6. Auto Flush Door Handle Control Unit

Installation

Kia EV6. Auto Flush Door Handle Control Unit

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Install in the reverse order of removal.
