Inspection

1.Check point (Warning lamp)



For fault conditions and normal operating conditions, refer to the owner's manual.

No	Illustration	Name	Color	Signal input	Signal Control	Check point
1		Turn signal (Left)	Green	CAN	IGPM	1) Multifunction Switch 2) IGPM 3) CAN Failure
2		Turn signal (Right)	Green	CAN	IGPM	1) Multifunction Switch 2) IGPM 3) CAN Failure
3		Tail lamp	Green	CAN	IGPM	1) Multifunction Switch 2) IGPM 3) CAN Failure
4		Low beam	Green	CAN	IGPM	1) Multifunction Switch 2) IGPM 3) CAN Failure
5		High Beam	Blue	CAN	IGPM	1) Multifunction Switch 2) IGPM 3) CAN Failure
6		LED Headlamp	Yellow	CAN	IGPM	1) Headlamp 2) IGPM 3) CAN Failure
7		Warning	Yellow	CAN	BCA	1) TPMS System 2) CAN Failure
					TPMS	1) TPMS System 2) CAN Failure
					FCA	1) FCA System 2) CAN Failure
					IBU	1) Exterior Lamp 2) IGPM 3) CAN Failure
					Low Washer	1) Washer level sensor 2) Wiring Failure
					Digital Input	Reminder for service checks
8		Service	Yellow	CAN	VCU BMS LDC MCU OBC DATC	1) VCU System 2) BMS System 3) LDC System 4) MCU System 5) OBC System 6) DATC System 7) CAN Failure
9		Power Down	Yellow	CAN	VCU	1) VCU System 2) CAN Failure
10		Low Battery (Low Battery)	Yellow	CAN	VCU	1) VCU System 2) CAN Failure
11		EV Battery Charge	Red	CAN	OBC BMS	1) OBC System 2) BMS System 3) CAN Failure
12		Battery Charge	Red	CAN	LDC	1) LDC System 2) CAN Failure
13		Immobilizer	Yellow	CAN	SMK	1) SMK System 2) CAN Failure 3) Hard-wired
14		Parking Brake Brake Fluid EBD EPB	Red	CAN Wiring Failure	IBU (Gateway) EBD EPB ABS TCS	1) IBU 2) ABS System 3) EPB System 4) CAN Failure 5) Parking Brake Switch 6) Brake Oil Lever Sensor
15		ABS	Yellow	CAN	ABS	1) ABS System 2) CAN Failure
16		ESC	Yellow	CAN	TCS	1) TCS System 2) CAN Failure
17		ESC Off	Yellow	CAN	TCS	1) TCS System 2) CAN Failure
18		Seat Belt	Red	CAN	IGPM	1) IGPM 2) CAN Failure
19		Airbag	Red	CAN	SRSCM	1) SRSCM System 2) CAN Failure
20		EPS (MDPS)	Red	CAN	MDPS	1) MDPS Unit System 2) MDPS Motor 3) CAN Failure
21		AEB	Yellow	CAN	SCC	1) VCU System 2) CAN Failure
22		Auto Hold	White Yellow Green	CAN	TCS	1) TCS System 2) CAN Failure
23		TPMS	Yellow	CAN	TPMS	1) TPMS System 2) CAN Failure
24		EPB	Yellow	CAN	EPB	1) EPB System 2) CAN Failure
25		Regenerative Braking System (RBS)	Yellow	CAN	AHB	1. AHB System 2. CAN Failure
26		4WD	Yellow	CAN	4WD VCU	1) 4WD System 2) CAN Failure
27		DBC	Green Yellow	CAN	TCS	1) DBC System 2) CAN Failure

2.Check point (Gauge)

NO	Name	Signal Input	Signal Control	Check Point
1	Speedometer	C-CAN	ESC Control Unit	1) CAN Line failure
2	Tachometer	C-CAN	ECM	1) CAN Line failure
3	Cooling water temperature	C-CAN	ECM	1) CAN Line failure

Removal



• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Remove the crash pad air vent duct [LH].(Refer to Body - "Crash Pad Air Vent")

2.Remove the crash pad center garnish.(Refer to Body - " Crash pad Garnish")

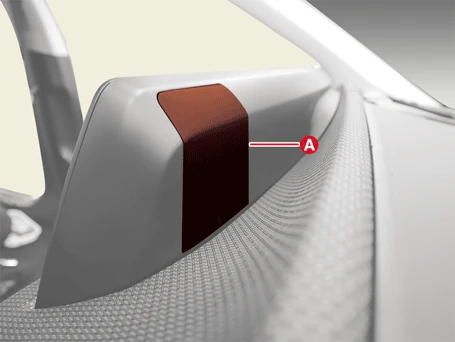

3.Remove the cluster blanking cover (A).

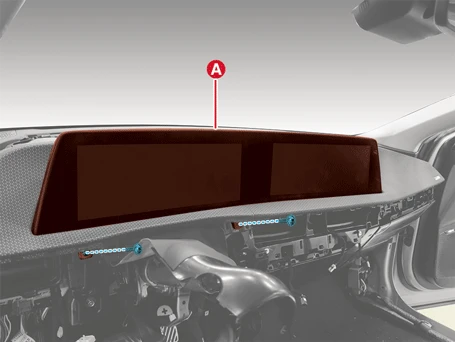

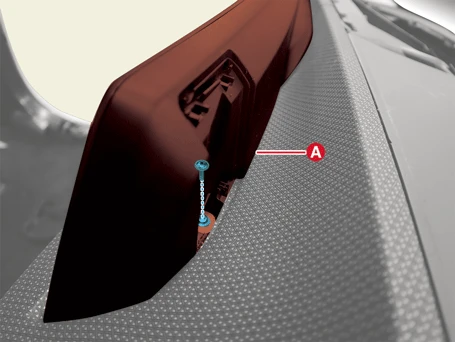

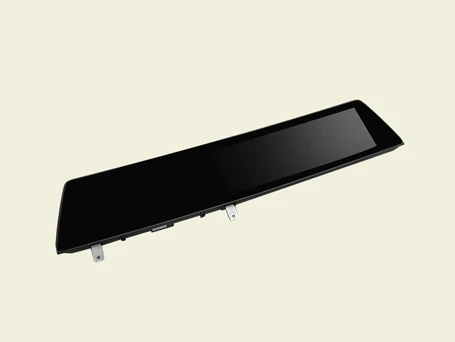

4.Remove the cluster (A) after removing the screws.

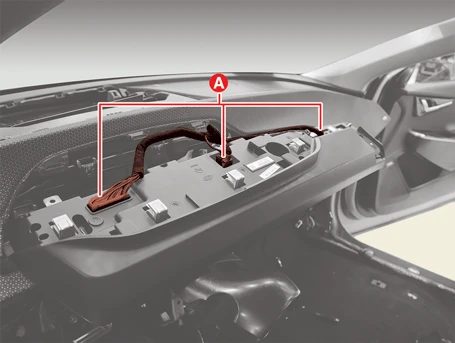

5.Disconnect the cluster connectors (A).

Installation



• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Install in the reverse order of removal.

Variant Coding

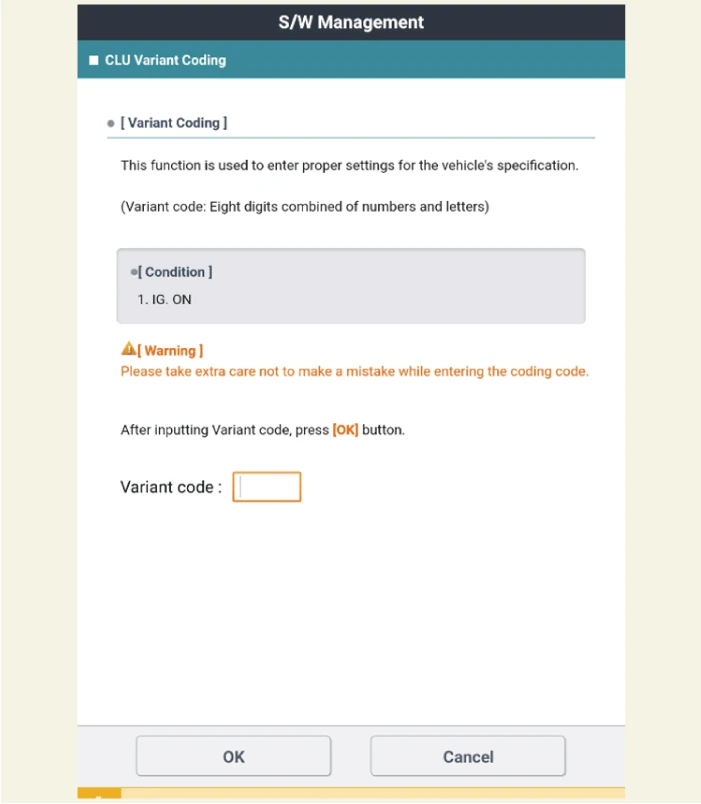

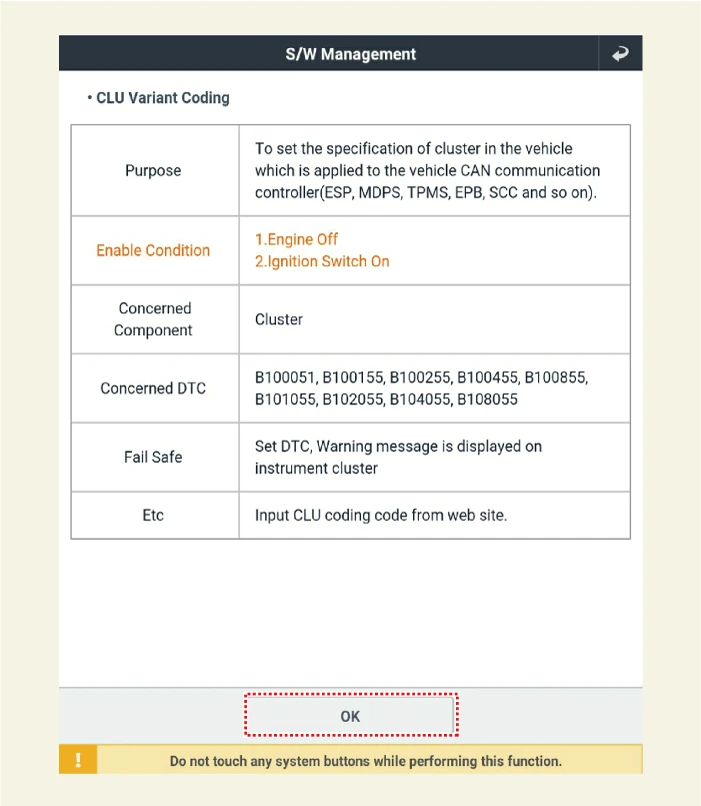

1.After replacing the cluster with a new one, the "Variant Coding" procedure must be performed.

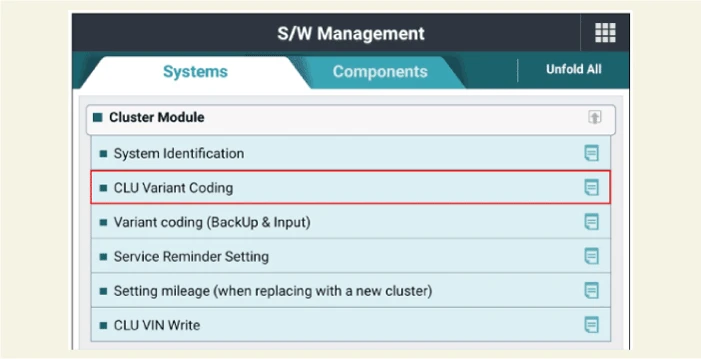

2.When replacing the cluster, perform the "Setting mileage" with KDS.(S/W Management → Cluster Module → Setting mileage)



Refer to the KDS screen for operating conditions and details
