Kia EV6: Mood Lamp

Removal

Kia EV6. Mood Lamp

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

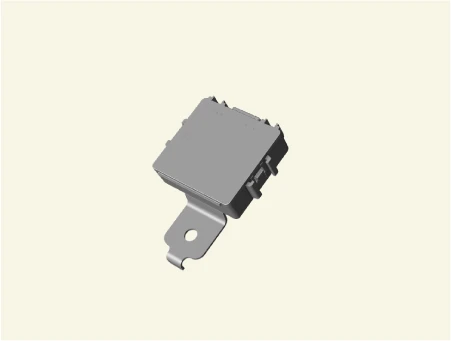

Mood Lamp Unit

Kia EV6. Mood Lamp

This image is LHD type, the RHD type is the inverted image of the LHD type image.

1.Remove the crash pad center garnish.(Refer to Body - "Crash Pad Garnish")

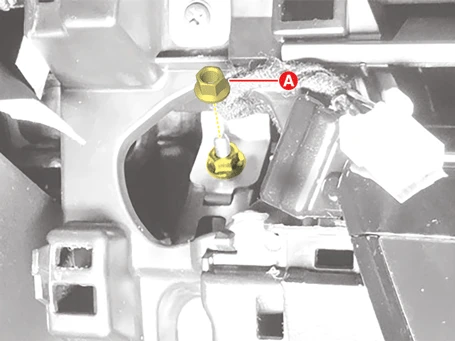

2.Remove the mood lamp unit nut (A).

Kia EV6. Mood Lamp

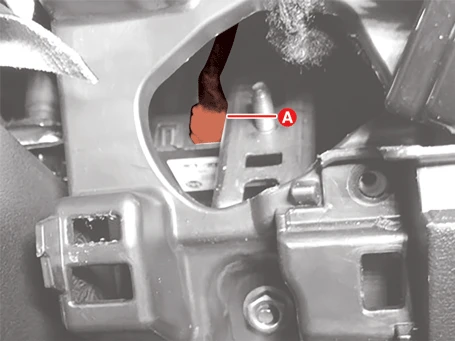

3.Disconnect the mood lamp unit connector (A).

Kia EV6. Mood Lamp

Kia EV6. Mood Lamp

Mood Lamp

[Front Door]

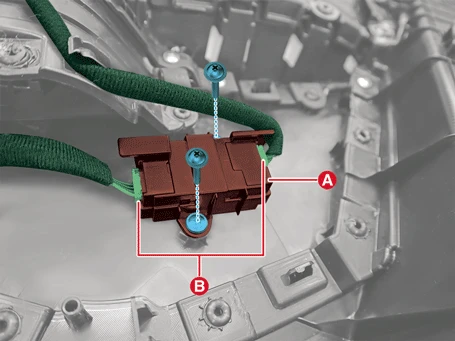

1.Remove the front door trim.(Refer to Body - "Front Door Trim")

2.Remove the mood lamp.

(1)Remove the mood lamp (A) after removing the screws.

(2)Disconnect the mood lamp connectors (B).

Kia EV6. Mood Lamp

[Rear Door]

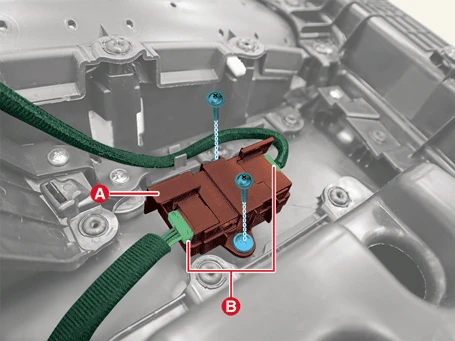

1.Remove the rear door trim.(Refer to Body - "Rear Door Trim")

2.Remove the mood lamp.

(1)Remove the mood lamp (A) after removing the screws.

(2)Disconnect the mood lamp connectors (B).

Kia EV6. Mood Lamp

[Crash Pad]

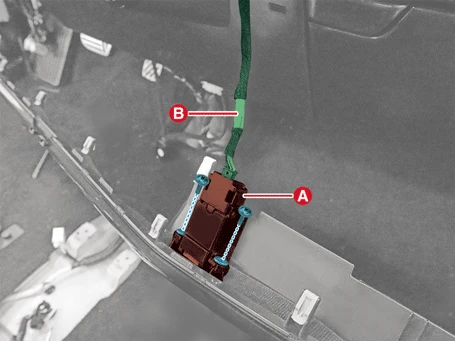

1.Remove the crash pad center garnish [RH].(Refer to Body - " Crash Pad Garnish")

2.Remove the mood lamp.

(1)Remove the mood lamp (A) after removing the screws.

(2)Disconnect the mood lamp connector (B).

Kia EV6. Mood Lamp

[Floor Console]

1.Remove the console upper cover.(Refer to Body - "Console Upper Cover”)

2.Remove the mood lamp.

(1)Remove the mood lamp (A) after removing the screws.

(2)Disconnect the mood lamp connectors (B).

Kia EV6. Mood Lamp

[Console Upper Cover]

1.Remove the console mood lamp.(Refer to Body - "Console Upper Cover")

Installation

Kia EV6. Mood Lamp

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Install in the reverse order of removal.
