Kia EV6: Description and Operation

Description

The system detects the passenger in the vehicle and prevents the driver from getting off the vehicle with the passenger in the back.

Kia EV6. Description and Operation

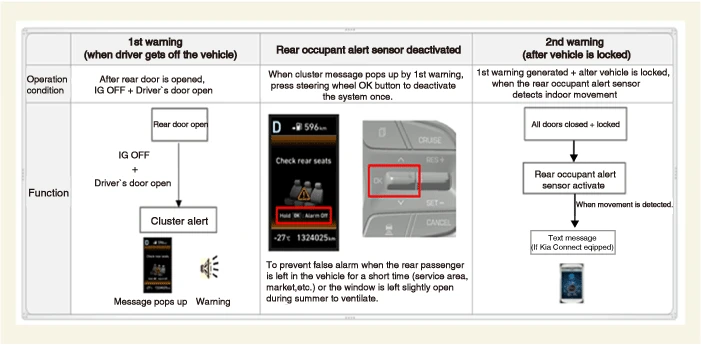

– 1st warning : If you open the driver's door after you open and then close the rear passenger and turn the IG off, the system provides warning by showing message on the cluster and giving voice instruction.

– 2nd warning :

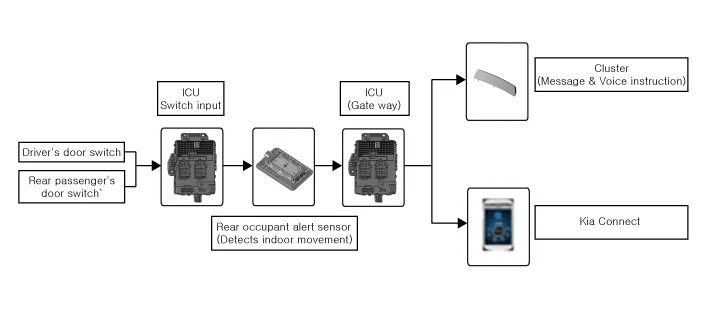

1)The system detects the indoor movement using the rear occupant alert sensor installed on the head lining when the driver gets off the vehicle and locks all the doors.

2)If any movement inside the vehicle is detected, horn is activated for 25 seconds and the mobile text message is sent. (If Kia Connect equipped).

Kia EV6. Description and Operation

    Next pageOn Vehicle Inspection

    On Vehicle Inspection Diagnosis with KDS 1.The Rear Occupant Alert (ROA) system can be more quickly diagnosed for problems with the KDS (Refer to "DTC guide"). (1)Self diagnosis : Ins ...
