Description

Heater Seat Smart Control Technology

• To prevent low temperature burn, seat heater temperature will automatically be lowered after a certain period of time.(Low temperature burn condition: Over 30 minutes at 50°C (122°F))

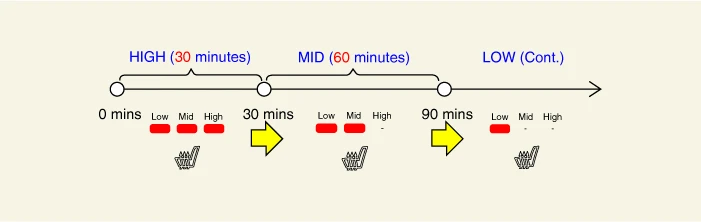

Heater Seat Smart Control Operation

[Front Seat / Rear Seat]

• Change to "MID" after 30 minutes in "HIGH", then "LOW" after 60 minutes in "MID"

• Change to "LOW" after 60 minutes in "MID"

• If temperature is raised manually within certain period of time after the temperature was lowered automatically, it will be lowered again soon to prevent overheating or low temperature burn.

• This is normal operating condition as a safety device.

Removal

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

[Front Seat]

1.Remove the floor console switch complete.(Refer to Body - "Console Upper Cover")

[Rear Seat]

1.Remove the power window rear switch.(Refer to Power Window - "Power Window Switch")

Installation

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Install in the reverse order of removal.

Inspection

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

Front Seat

[Heater/Ventilation Type]

1.The body electrical system can be more quickly diagnosed for problems with the KDS (Refer to "DTC guide").

(1)Self diagnosis : Inspection and display failed code (DTC)

(2)Sensor data : Checks the system input/output values

(3)Forced operation : Checking the system operation condition

(4)Additional function : Controlling other features including system option setting and zero point adjustment

[Heater Type]

1.Remove the floor console upper cover.(Refer to Body - "Floor Console Assembly")

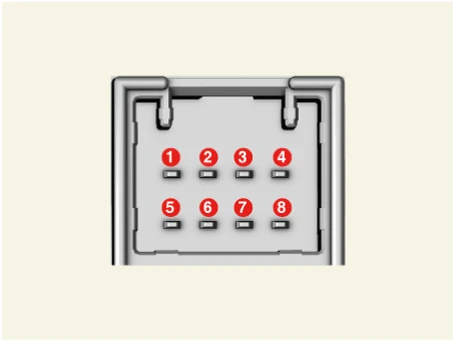

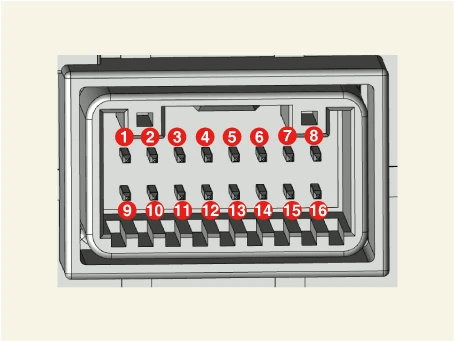

2.Push and hold the switch, check for continuity between signal terminal and ground terminal.

Rear Seat

[Heater/Ventilation Type]

1.The body electrical system can be more quickly diagnosed for problems with the KDS (Refer to "DTC guide").

(1)Self diagnosis : Inspection and display failed code (DTC)

(2)Sensor data : Checks the system input/output values

(3)Forced operation : Checking the system operation condition

(4)Additional function : Controlling other features including system option setting and zero point adjustment

[Heater Type]

1.Remove the rear door trim.(Refer to Body - "Rear Door Trim")

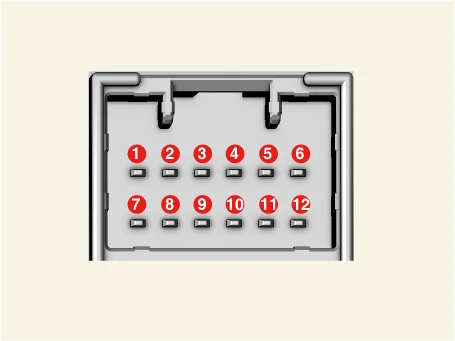

2.Push and hold the switch, check for continuity between signal terminal and ground terminal.

[Safety Type]

[Manual Type]
