Kia EV6: Inspection

Inspection

Kia EV6. Inspection

• When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.

• When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.

• When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

1.Remove the overhead console lamp.(Refer to Lighting System - "Overhead Console Lamp")

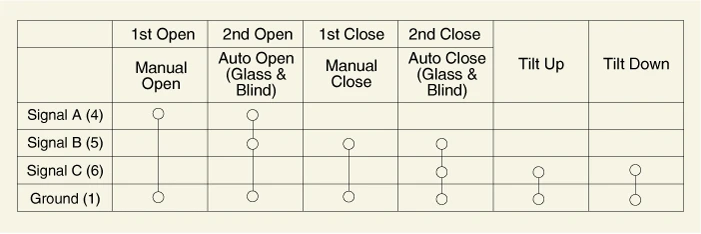

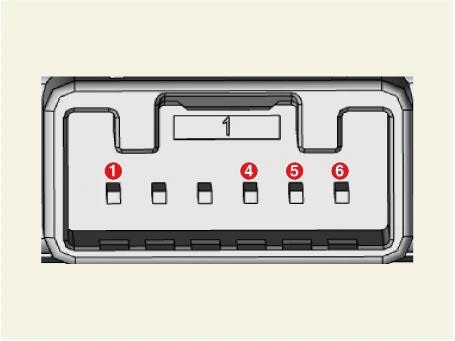

2.Check for continuity between the terminals in each switch position according to the table. If there is no continuity, replace the overhead console lamp assembly.

Kia EV6. Inspection

Kia EV6. Inspection

    Next pageReplacement

    Replacement 1.If the wide sunroof switch needs to be replaced, replace the overhead console lamp assembly.(Refer to Lighting System - "Overhead Console Lamp") ...
