Removal

Front Wiper Arm

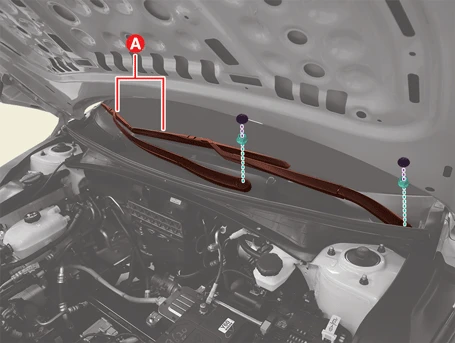

• After turning off the PE module, move the wiper switch to the single wiping (MIST) position within 20 seconds and hold the switch more than 2 seconds until the wiper blade is in the service position.

• After IG ON move the wiper switch to the single wiping (MIST) and wiper arms will return to the normal operating position.

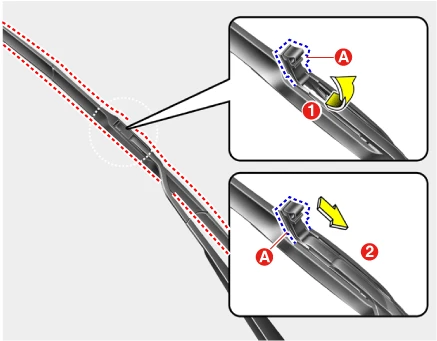

1.Remove the blade by pushing it in the direction arrow after opening the hook (A).

2.Remove the wiper arms (A) by removing the nuts after removing the caps.

Tightening torque :22.6 - 26.5 N·m (2.3 - 2.7 kgf·m, 16.6 - 19.5 lb·ft)

Installation

1.Install in the reverse order of removal.

• When installing, place the wiper arm to the specified position and then tighten the nut.

[Front Wiper]

(Passenger Side)

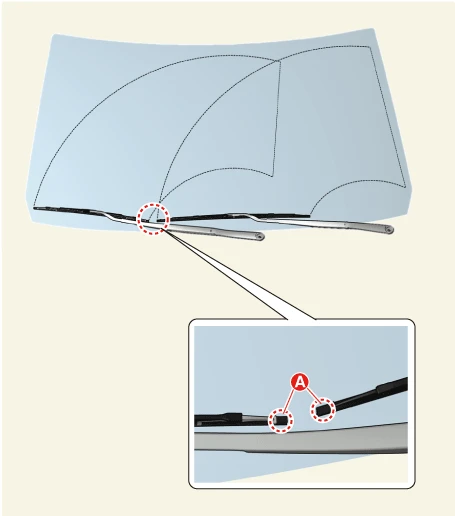

– Place the wipers to the marking (A) position of cowl top cover.

(Driver Side)

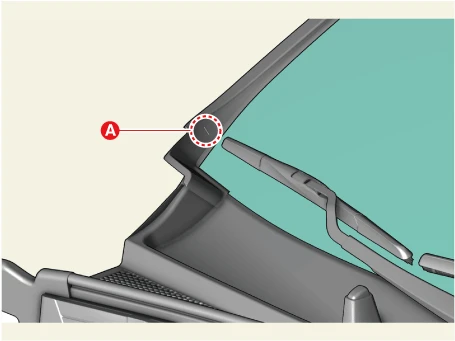

– Place the wipers to the marking (A) position of windshield glass.
