Kia EV6: Single-Use Parts

Single-Use Parts

Non-reusable parts (Single-Use Parts)

Workshop manual provides “Components and Components Location” which can be used to identify “Non-reusable parts”. When repairing a vehicle, Non-reusable parts such as fasteners, gaskets, washers, clips and garnishes must be replaced. Kia Non-reusable parts are designed to be installed only once. Before working on a vehicle, check “Components and Components Location” to find the non-reusable parts in a system.

※ Symbol of Non-reusable parts

Symbol Meaning

Kia EV6. Single-Use Parts

Do not reuse the part. Replace with a new one.

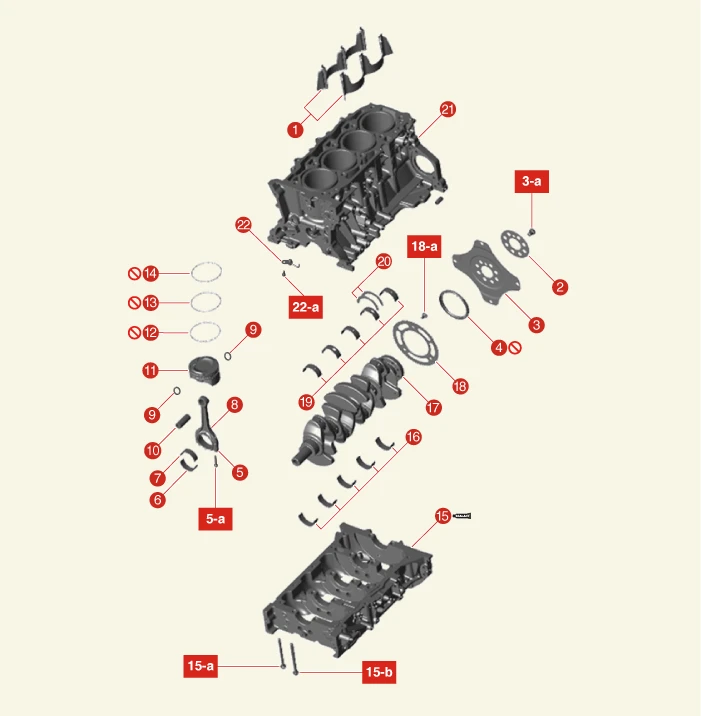

※ Example of “Components and Components Location”

Kia EV6. Single-Use Parts
