Kia EV6: Components and Components Location

Component

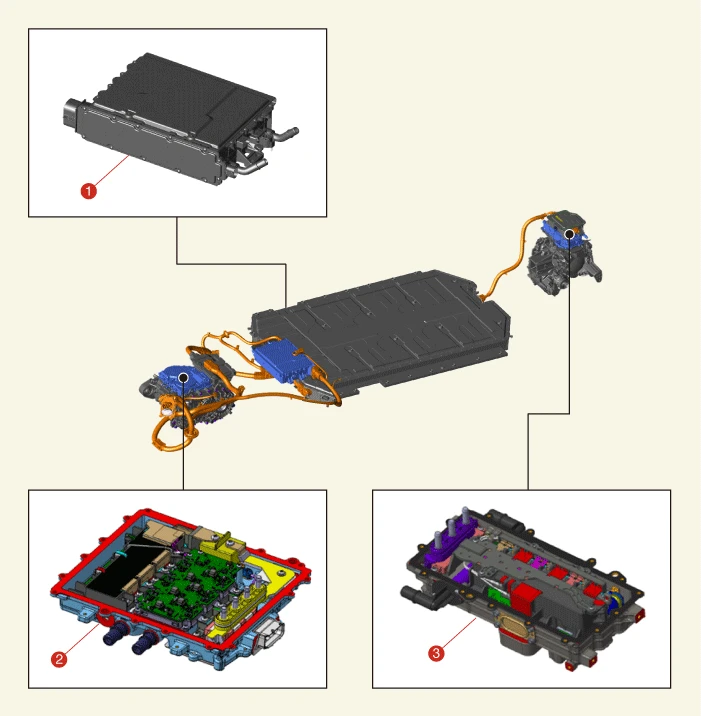

Kia EV6. Components and Components Location

1. Integrated Charging Control Unit (ICCU)
2. Multi Inverter Assembly
3. Inverter Assembly (For 4WD)
