Battery Control System (Standard) (EV Battery System) / High Voltage Battery System / Components and Components Location /

Kia EV6: Components and Components Location

Component

Kia EV6. Components and Components Location

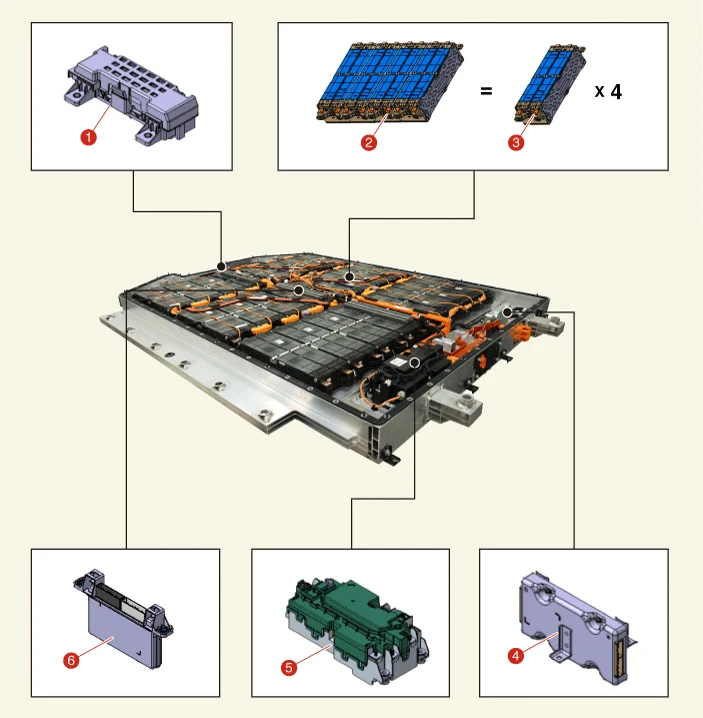

1. Main Fuse
2. Sub Battery Pack Assembly (Sub-BPA)
3. Battery Module Assembly (BMA)
4. Battery Management Unit (BMU)
5. Power Relay Assembly (PRA)
6. Cell Monitoring Unit (CMU)

Specification

Specification Item Specification Capacity (kWh) 58.0 Rated voltage (V) 523 Charge / Discharge output (kW) Maximum 195 ...
